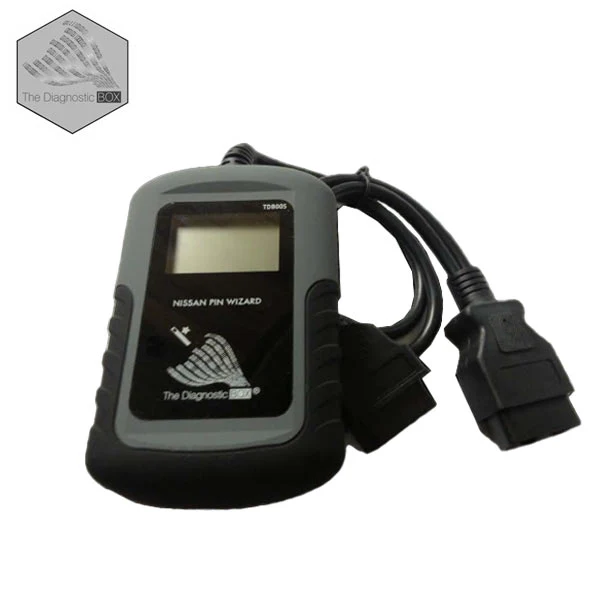

The Diagnostic Box - TDB005 - Nissan Pin Wizard

TDB-TDB005

The Diagnostic Box TDB005 Nissan Pin Wizard is a product that plugs into the OBD and a connector to plug into a programmer such as the AD100 Pro, AD100, T-Code, T-Code Pro, Zedfull, SKP900, MVP Pro, etc. When the programmer reads the BCM LABEL, the Pin Wizard will convert that number to the required pin code. The pin code will appear on the Pin Wizard display. The TDB005 NISSAN PIN WIZARD will work on 4 digit pins with unlimited use, and 20 digit pins 100 times. At the end of those 100 uses it will still work for the 4 digit pin but no longer for the 20 digit pin and a new unit will need to be purchased.

IMPORTANT NOTE: THE TDB005 WILL NOT WORK WITH 20 DIGIT PIN CODES IN UK, EUROPE, AND AUSTRALIA.

Features

• Unlimited 4-Digit Pin Use
• 100 20-Digit Use
• Old and New Pins



Specifications

Dimensions	84mm (3.31") W x 140mm (5.51") H x 29mm (1.14") D
Weight	400g (0.88lbs.)
Connection	OBD 16 Pin MALE and FEMALE Connector
Current Consumption	60 mA
Power	12 Volts DCLCD
Display	128x64 Backlit LCD
