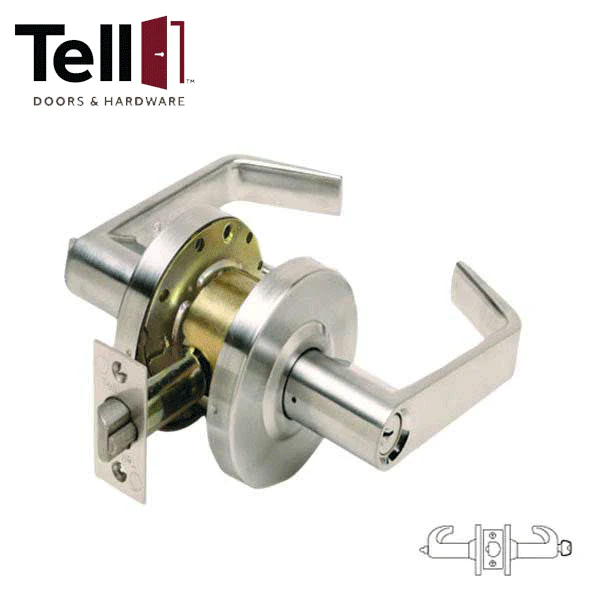

TELL - LC2681 - Standard Duty Cylindrical Leverset - Cortland - Office/Entry - 2 3/4" Backset - Schlage SC1 Keyway - Grade 2
TELL-LC2681-CTL-26D
TELL LC2600 Series providesĀ standard duty gradeĀ 2 performance to any home. TELL door lever locksets include cylinder locksets with a lever handle that allows doors to be opened with a natural downward hand motion. They include locksets that can be easily rekeyed without changing a device's bolt work. Door lever locksets are used to secure doors in offices, warehouse buildings, retail stores, residences, and more.
Feature
- Latch bolt operated by lever from either side
- Outside lever locked by turn button from inside
- Unlocked by key from outside or rotating inside lever
Ā
Specifications
| Function | Entrance - Inside Button, Outside Keyed |
| Finish | Satin Chrome |
| Chassis | Cylindrical, steel-coated w/ zinc dichromate (corrosion resistance) |
| Lever | Non-handed |
| Latch | 1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel) |
| Rose | 3-1/4" diameter |
| Thru-bolts | Removable thru-bolts standard |
| Backset | 2-3/4 |
| Strike | Square corner 1-1/4" x 4-7/8" ANSI ASA Strike |
| Standard Cylinder | Standard cylinder Schlage SC1 keyway |
| Keys | Two per lock |
| Door Range | 1-3/8" to 2" |
| Door Preparation | 2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep. |
| Fire Rated | UL/ULC listed for 3 hour fire door |
| Certifications | ANSI A156.2,Ā Grade 2, 400,000 cycles,Ā ANSI A117.1 accessibility (ADA) code |
| Manufacturer's Warranty | Limited Lifetime |
