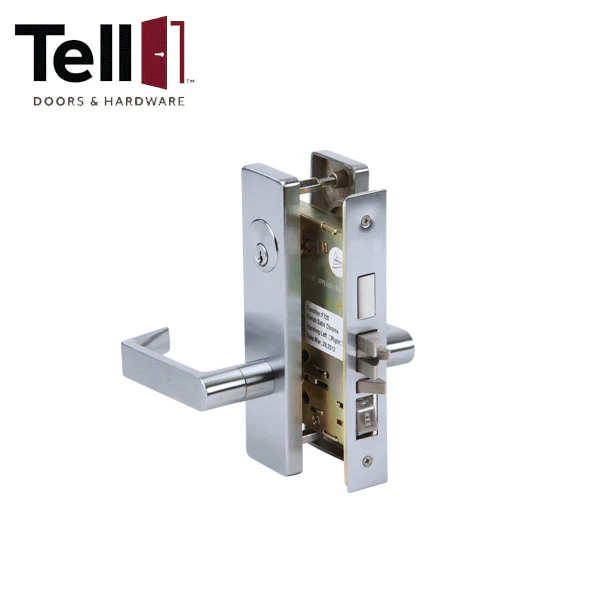

TELL - CL102258 - Heavy Duty Mortise Lock - Stainless Steel - 2-3/4" Backset - M713 Function
The CL102258 Grade-1 Heavy Duty Mortise Lock is built to withstand high-traffic applications for extra strength security. With a variety of functions, trims and finishes, ML1300 lock is durable making it perfect use for schools, hotels, office buildings, retail stores and many other high traffic applications.
| Performance | Grade 1 heavy duty 1,000,000 cycles |
| Function | M713 Function |
| Compliance | American Disabilities Act (ADA) ANSI A117.1 Complies with ANSI A156.13, Series 100 |
| Chassis | Mortise Steel – coated with zinc dichromate (corrosion resistance) 13 gauge cold rolled steel |
| Trim | Escutcheon Lever Non-handed, field reversible Solid forged brass |
| Latch | 2-3/4” Backset Latch 3/4” throw Deadbolt 1” stainless steel throw Anti-friction |
| Strike | 4-7/8” curved strike Optional straight lip (stainless steel) |
| Cylinder | Schlage (SCC) - C keyway 6-pin solid brass Keyed different (KD) |
| Keys | Two nickel silver per lock cylinder |
| Door Preparation | Per function and template |
| Warranty | Lifetime limited |
