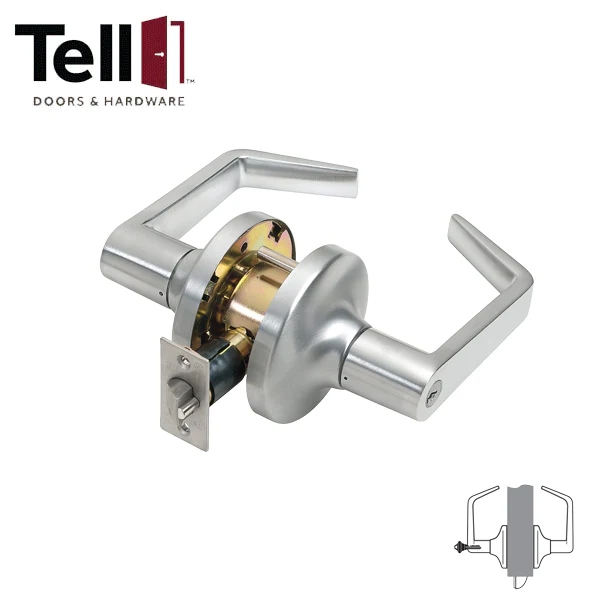

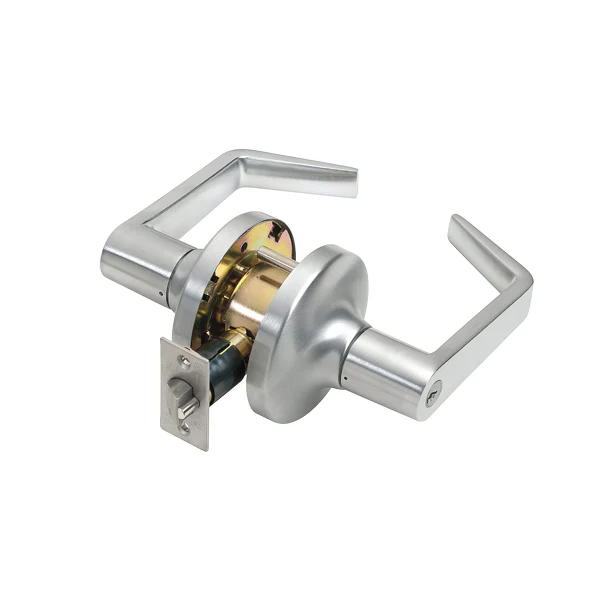

TELL - CL101116 - Standard Duty Cylindrical Leverset - Satin Chrome - 2-3/4" Backset - Grade 2 - Optional Finish - Classroom
The TELL LC2684 Cortland Lever is a grade 2 cylindrical, standard-duty lever in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These levers can be used in new construction or replacement hardware fitting a standard 161 door prep. Other functions and finishes available.
| Performance | Grade 2 standard duty 400,000 cycles |
| Compliance | UL/ULC listed for 3-hour fire door American Disabilities Act (ADA) ANSI A117.1 ANSI A156.2, Series 400 |
| Chassis | Cylindrical Steel - corrosion resistance Optional freewheeling clutch |
| Handle | Lever, non-handed Styles: Cortland, Buckingham and Sturdee |
| Latch | 2-3/4" Backset, 2-3/8" available 3/4" Housing diameter 1/2" Stainless steel throw 1-1/8""x 2-1/4", Square corner faceplate |
| Strike | ASA Strike 1-1/4" x 4-7/8"" Optional T-Strike 1-1/8" x 2-3/4" Optional F-Strike (full lip) |
| Rose | 3-1/4" diameter |
| Cylinder | SCC Standard, C keyway 6-pin solid brass Keyed different (KD) |
| Keys | Two nickel silver per lock cylinder |
| Door Preparation | 1" Diameter for latchbolt Fits standard 161 door prep |
| Door Range |
1-3/8" - 2" 2-1/8" Diameter for lever |
| Warranty | Lifetime limited |
Select Finish
From $16.11
Original: $46.04
-65%TELL - CL101116 - Standard Duty Cylindrical Leverset - Satin Chrome - 2-3/4" Backset - Grade 2 - Optional Finish - Classroomā
$46.04
$16.11Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The TELL LC2684 Cortland Lever is a grade 2 cylindrical, standard-duty lever in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These levers can be used in new construction or replacement hardware fitting a standard 161 door prep. Other functions and finishes available.
| Performance | Grade 2 standard duty 400,000 cycles |
| Compliance | UL/ULC listed for 3-hour fire door American Disabilities Act (ADA) ANSI A117.1 ANSI A156.2, Series 400 |
| Chassis | Cylindrical Steel - corrosion resistance Optional freewheeling clutch |
| Handle | Lever, non-handed Styles: Cortland, Buckingham and Sturdee |
| Latch | 2-3/4" Backset, 2-3/8" available 3/4" Housing diameter 1/2" Stainless steel throw 1-1/8""x 2-1/4", Square corner faceplate |
| Strike | ASA Strike 1-1/4" x 4-7/8"" Optional T-Strike 1-1/8" x 2-3/4" Optional F-Strike (full lip) |
| Rose | 3-1/4" diameter |
| Cylinder | SCC Standard, C keyway 6-pin solid brass Keyed different (KD) |
| Keys | Two nickel silver per lock cylinder |
| Door Preparation | 1" Diameter for latchbolt Fits standard 161 door prep |
| Door Range |
1-3/8" - 2" 2-1/8" Diameter for lever |
| Warranty | Lifetime limited |
