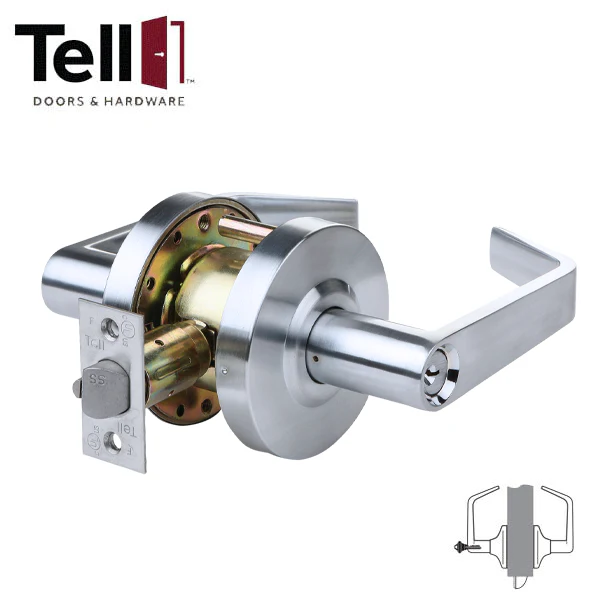

TELL- CL101027 - Standard Duty Cylindrical Leverset - Cortland - Storeroom - 2 3/4" Backset - Schlage C Keyway - Satin Chrome - Grade 2

TELL LC2686 Provides standard duty grade 2 performance to any home. TELL door lever storeroom lockets have a latch operated by rotating the inside lever or key in the outside lever. The outside lever is always fixed.

Feature

• Keys: Two nickel silver per lock
• Schlage (SCC), Schlage C 6-pin keyway standard. rned.
• Latch operated by rotating the inside lever or key in the outside lever
• The outside lever is always fixed



Specifications

Function	Storeroom - Inside Always Unlocked, Outside Always Locked
Finish	26D Satin Chrome
Chassis	Cylindrical, steel-coated w/ zinc dichronate (corrision resistance)
Lever	Non-handed
Latch	1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel)
Thru-bolts	Thru-bolts standard
Backset	2-3/4"
Strike	Square corner 1-1/4" x 4-7/8" ANSI ASA Strike, Standard.
Keys	Two nickel silver per lock lock
Door Range	1-1/2" to 2"
Door Preparation	2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep.
Fire Rated	UL/ULC listed for 3 hour fire door
Certifications	Complies with ANSI A156.2, Series 4000, Grade 2, 400,000 cycles, ANSI A117.1 accessibility (ADA) code
Manufacturer's Warranty	1 Year Limited



Downloads

• Spec Sheet
