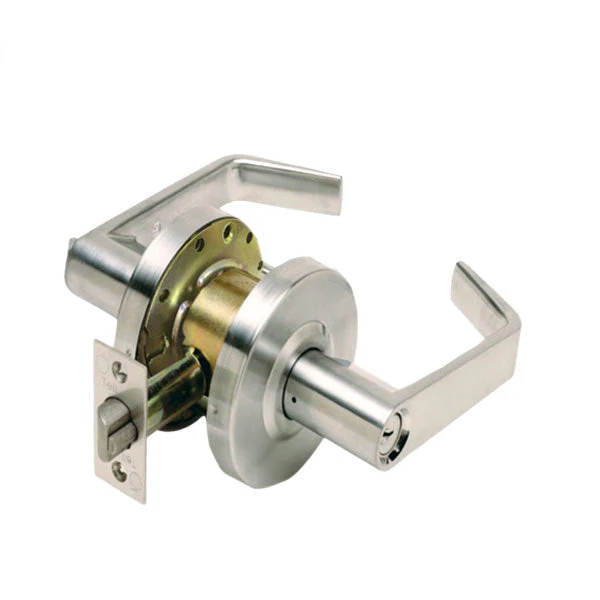

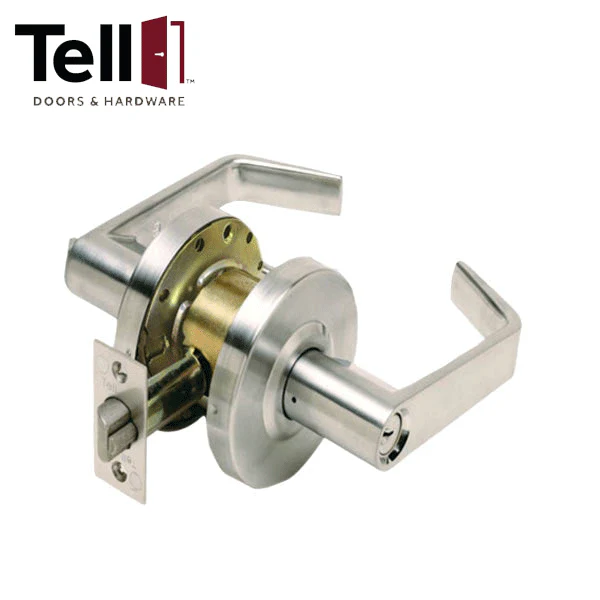

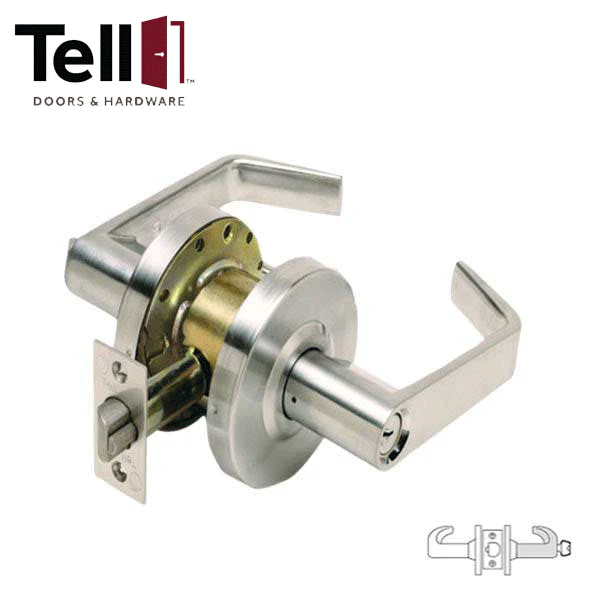

TELL-CL102261 - Standard Duty Cylindrical Leverset - Cortland - Storeroom - 2 3/4" Backset - Satin Chrome - Optional Free-Wheeling Clutch - Grade 2

TELL-CL102261

TELL LC2686 Provides standard duty grade 2 performance to any home. TELL door lever locksets include cylinder locksets with a lever handle that allows doors to be opened with a natural downward hand motion. They include locksets that can be easily rekeyed without changing a device's bolt work. Door lever locksets are used to secure doors in offices, warehouse buildings, retail stores, residences, and more.

Feature

• Comes with the option for a freewheeling clutch
• Freewheeling Clutch allows the locked lever to still be fully turned.
• Latch operated by rotating inside lever or key in outside lever
• Outside lever always fixed



Specifications

Function	Storeroom - Inside Always Unlocked, Outside Always Locked
Finish	Satin Chrome
Chassis	Cylindrical, steel-coated w/ zinc dichromate (corrosion resistance) Optional Freewheeling Clutch
Lever	Non-handed
Latch	1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel)
Rose	3-1/4" diameter
Thru-bolts	Removable thru-bolts standard
Backset	2-3/4
Strike	Square corner 1-1/4" x 4-7/8" ANSI ASA Strike

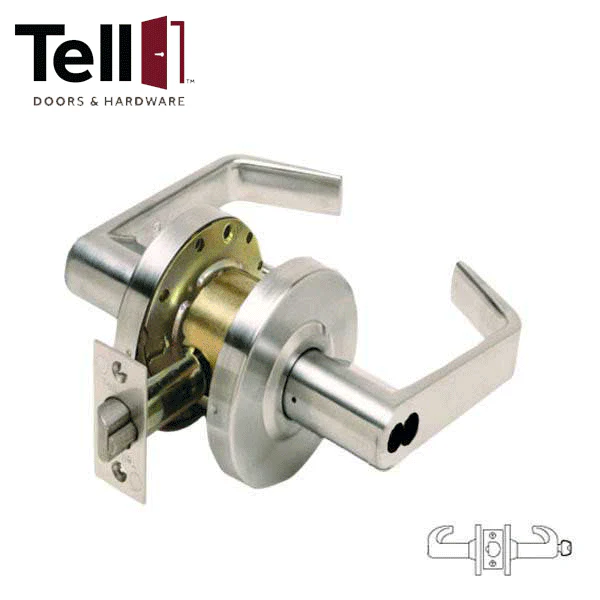

Options	Only Freewheeling Clutch. Only Standard cylinder Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD). Only tell IC cylinder 6-pin or 7-pin interchangeable core.
Keys	Two nickel silver per lock lock
Door Range	1-3/8" to 2"
Door Preparation	2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep.
Fire Rated	UL/ULC listed for 3 hour fire door
Certifications	ANSI A156.2, Grade 2, 400,000 cycles, ANSI A117.1 accessibility (ADA) code
Manufacturer's Warranty	Limited Lifetime



Downloads

• Spec Sheet
