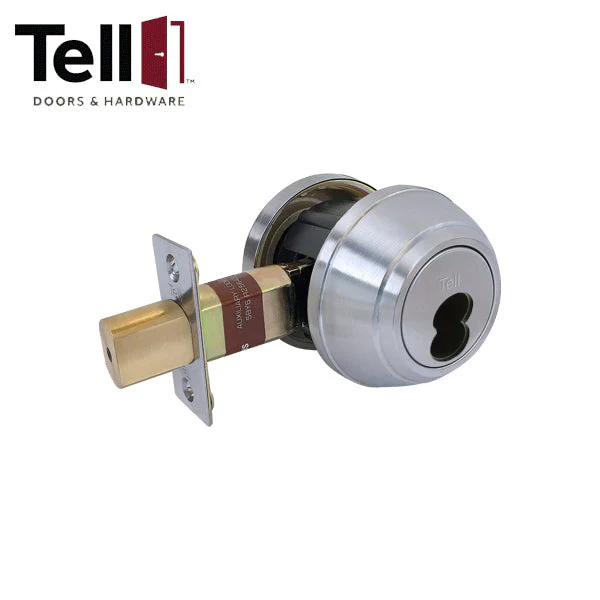

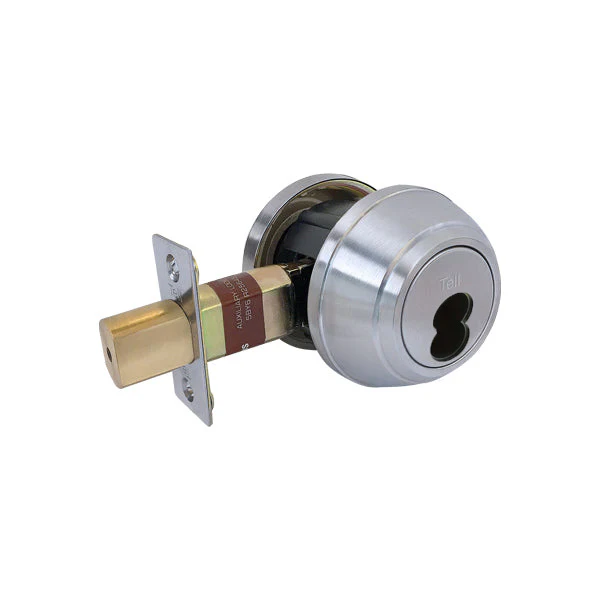

TELL - CL100933 - Heavy Duty - Tubular Deadbolt - Single Cylinder
The DB1000 Series is a grade 1 tubular, heavy-duty deadbolt designed for high security. It is designed with a saw-resistant bolt with a 1" throw. Comes in double and single cylinder options in a satin stainless steel finish. The cylinder is a 6-pin solid brass keyway. Other finishes available.
| Performance | Complies with ANSI A156.5 Grade 1, 250,000 cycles |
| Chassis | Tubular, steel |
| Deadbolt | 1” housing diameter (stainless steel) 1” throw with roller bar (added security for hacksaw or reciprocating blade cutting) 1” x 2-1/4”, faceplate |
| Latch | 2-3/4” Backset |
| Strike | 1-1/8” x 2-3/4”, square corner faceplate |
| Cylinder | SCC - C keyway 6-pin solid brass Keyed different (KD) |
| Keys | Two nickel silver per lock cylinder |
| Door Range | 1-3/8” – 2” |
| Door Preparation | 2-1/8” diameter for bore 1” diameter for bolt Fits standard 161 door prep |
| Warranty | Lifetime limited |
$16.11
Original: $46.04
-65%TELL - CL100933 - Heavy Duty - Tubular Deadbolt - Single Cylinder—
$46.04
$16.11Product Information
