TELL - CL100398 - Heavy Duty Cylindrical Leverset - Cortland - Optional IC Core - 2-3/4" Backset - Satin Chrome - Grade 1 - Storeroom

TELL - CL100398 - Heavy Duty Cylindrical Leverset - Cortland - Optional IC Core - 2-3/4" Backset - Satin Chrome - Grade 1 - Storeroom

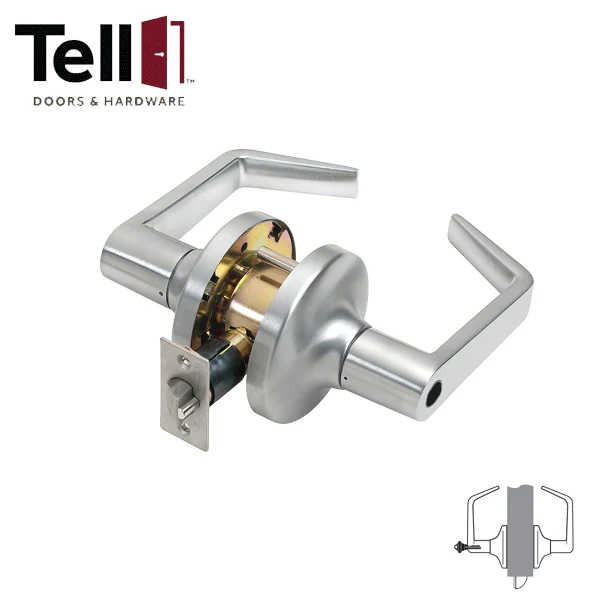

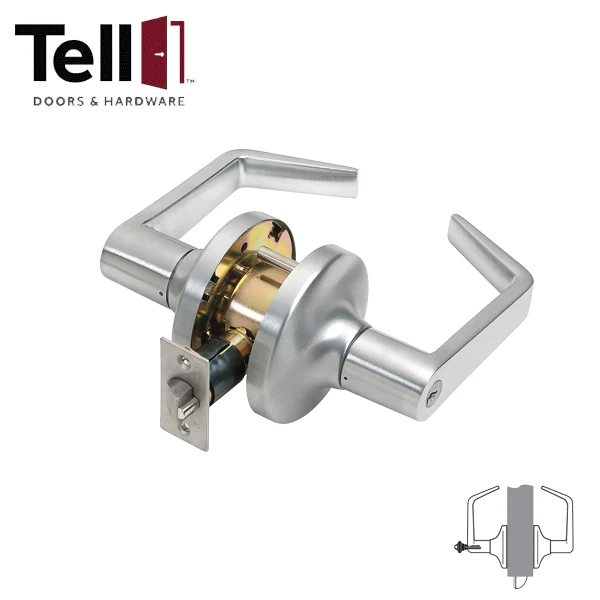

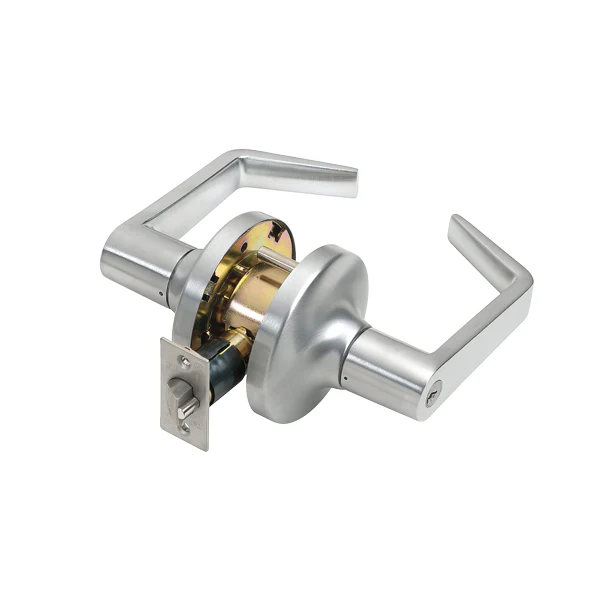

The LC1286CTL Lever is a grade 1 cylindrical, heavy-duty lever in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These levers can be used in new construction or replacement hardware fitting a standard 161 door prep. Other functions and finishes are available.

    Performance Grade 1 heavy duty
    800,000 Cycles
    Compliance UL/ULC listed for up to 3-hour fire rated
    ANSI A117.1, American Disabilities Act (ADA)
    ANSI A156.2, Series 400
    Chassis Cylindrical
    Steel – corrosion resistant
    Freewheeling clutch for added security
    Independent spring cages
    Handle Lever, solid cast non-handed
    Latch 2-3/4” Backset, 2-3/8" available
    1/2” Stainless steel throw
    1” Housing diameter
    1-1/8” x 2-1/4” Faceplate
    Rose 3-1/2” Diameter
    Strike ASA Strike 1-1/4” x 4-7/8”
    Optional T-Strike 1-1/8” x 2-3/4”
    Optional F-Strike (full lip)
    Cylinder SCC Standard, C keyway
    6-pin solid brass
    Keyed different (KD)
    Keys Two nickel silver keys per lock cylinder
    Door Range 1-3/8” - 2” Thickness
    2-1/8” Diameter for lever
    1” Diameter for latchbolt
    Fits standard 161 door prep with thru-bolting
    Door Preparation 2-1/8” Diameter for lever
    1” Diameter for latchbolt
    Fits standard 161 door prep with thru-bolting
    Warranty Lifetime limited
    Select Lock Prep
    From $28.29

    Original: $80.82

    -65%
    TELL - CL100398 - Heavy Duty Cylindrical Leverset - Cortland - Optional IC Core - 2-3/4" Backset - Satin Chrome - Grade 1 - Storeroom—

    $80.82

    $28.29

    Product Information

    Shipping & Returns

    Description


    The LC1286CTL Lever is a grade 1 cylindrical, heavy-duty lever in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These levers can be used in new construction or replacement hardware fitting a standard 161 door prep. Other functions and finishes are available.

      Performance Grade 1 heavy duty
      800,000 Cycles
      Compliance UL/ULC listed for up to 3-hour fire rated
      ANSI A117.1, American Disabilities Act (ADA)
      ANSI A156.2, Series 400
      Chassis Cylindrical
      Steel – corrosion resistant
      Freewheeling clutch for added security
      Independent spring cages
      Handle Lever, solid cast non-handed
      Latch 2-3/4” Backset, 2-3/8" available
      1/2” Stainless steel throw
      1” Housing diameter
      1-1/8” x 2-1/4” Faceplate
      Rose 3-1/2” Diameter
      Strike ASA Strike 1-1/4” x 4-7/8”
      Optional T-Strike 1-1/8” x 2-3/4”
      Optional F-Strike (full lip)
      Cylinder SCC Standard, C keyway
      6-pin solid brass
      Keyed different (KD)
      Keys Two nickel silver keys per lock cylinder
      Door Range 1-3/8” - 2” Thickness
      2-1/8” Diameter for lever
      1” Diameter for latchbolt
      Fits standard 161 door prep with thru-bolting
      Door Preparation 2-1/8” Diameter for lever
      1” Diameter for latchbolt
      Fits standard 161 door prep with thru-bolting
      Warranty Lifetime limited
