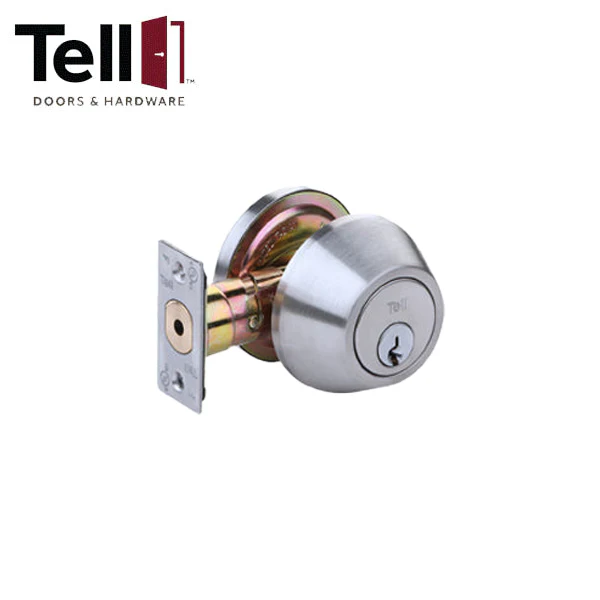

TELL - DB2000 Series - Standard Duty - Tubular Deadbolt - Double Cylinder - Optional Finish - Grade 2

The DB2000 Series is a grade 2 tubular, standard duty deadbolt designed for superior security with a saw-resistant bolt with a 1" throw. Comes in double and single cylinder options in a satin stainless steel finish. The cylinder is a 6-pin solid brass keyway. Other finishes available.

Performance	Complies with ANSI A156.5 Grade 2, 150,000 cycles
Chassis	Tubular, steel
Deadbolt	1" Housing diameter (stainless steel) 1" throw with roller bar (added security for hacksaw or reciprocating blade cutting) 1" x 2-1/4" , faceplate
Latch	2-3/8" to 2-3/4" Adjustable latch
Strike	1-1/8" x 2-3/4" , square corner faceplate
Cylinder	SCC - C keyway 6-pin solid brass Keyed different (KD)
Keys	Two nickel silver per lock cylinder
Door Range	1-3/8” - 1-3/4”
Door Preparation	2-1/8" diameter for bore 1" Diameter for bolt Fits standard 161 door prep
Warranty	Lifetime limited
