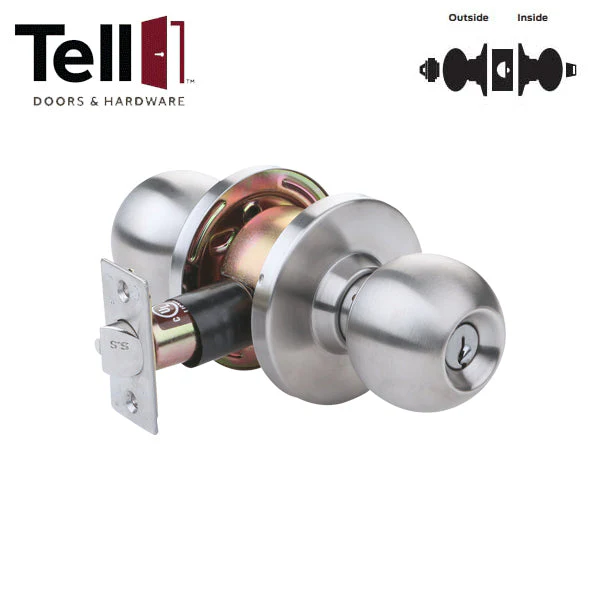

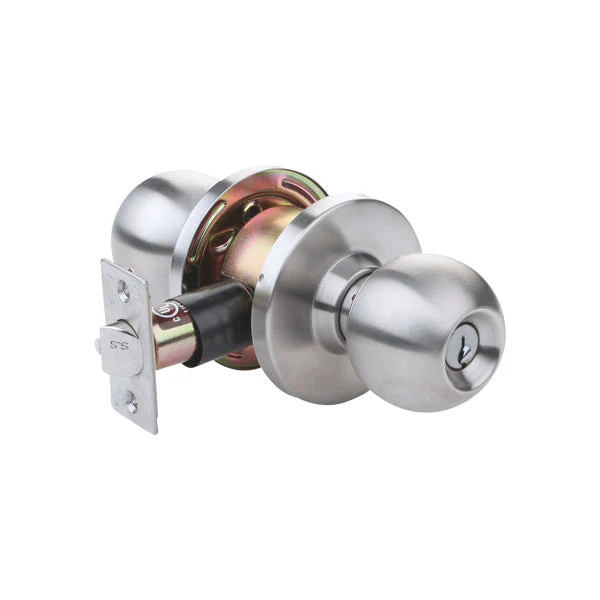

TELL - CL100031 - Heavy Duty Cylindrical Knob - Satin Stainless - 2-3/4" Backset - Grade 2 - Entrance

The KC2300 Series Empire Ball Knob is a grade 2 cylindrical, heavy duty knob in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These knobs can be used in new construction or replacement hardware fitting a standard 161 door prep. Other functions and finishes available.

Performance	Complies with ANSI A156.2, Series 4000 Grade 2, 400,000 cycles UL/ULC listed for 3 hour fire door
Chassis	Cylindrical Steel - coated with zinc dichromate (corrosion resistance)
Latch	2-3/4” Backset 1” Housing diameter 1/2” Stainless steel throw 1-1/8” x 2-1/4” Square corner faceplate Optional 2-3/8” Backset
Strike	ASA Strike 1-1/4” x 4-7/8” Optional T-Strike 1-1/8” x 2-3/4” Optional F-Strike (full lip)
Rose	3” diameter
Cylinder	SCC - C keyway 6-pin solid brass Keyed different (KD)
Keys	Two nickel silver per lock cylinder
Door Preparation	2-1/8” diameter for knob 1” diameter for latch bolt Fits standard 161 door prep
Door Range	1-3/8” - 1-3/4”
Warranty	Lifetime limited
