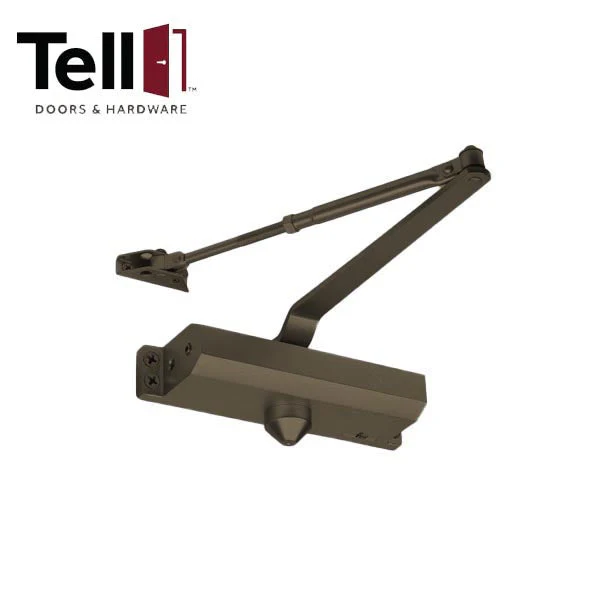

TELL - 12544 - Heavy Duty Commercial Door Closer - Fixed Spring Tension - Grade 3 - Size 4 - Backcheck - Parallel Arm Bracket - Optional Finish

TELL-DC100010

Tell Manufacturing's 500 Series Door Closer is designed for interior commercial use. It is a Grade 3 heavy-duty aluminum commercial door closer that complies with ANSI A156.4

Specifications:

Performance	Complies with ANSI A156.4 Grade 3 – 500,000 cycles UL/ULC listed up to 3 hours fire rated
Chassis	Cast aluminum
Handing	Non-handed
Mounting	Tri-Pack – regular, top jamb and parallel arm applications
Arm	Stamped steel Accommodates up to 3 ¼" reveals Adjustable extension arm
Spring Power	Size 3 or Size 4, non-adjustable
Valves	Adjustable, independent Non-critical – sweep and latch Consistent closing speeds
Fasteners	Metal screws included for hollow metal and aluminum mounting applications Wood screws included for wood door mounting applications Thru-bolts optional
Door Range	Up to 180 degrees
Door Preparation	9-1/16” horizontal x 3/4” vertical 4-Hole mounting location Retrofits traditional closer
Warranty	Lifetime limited
