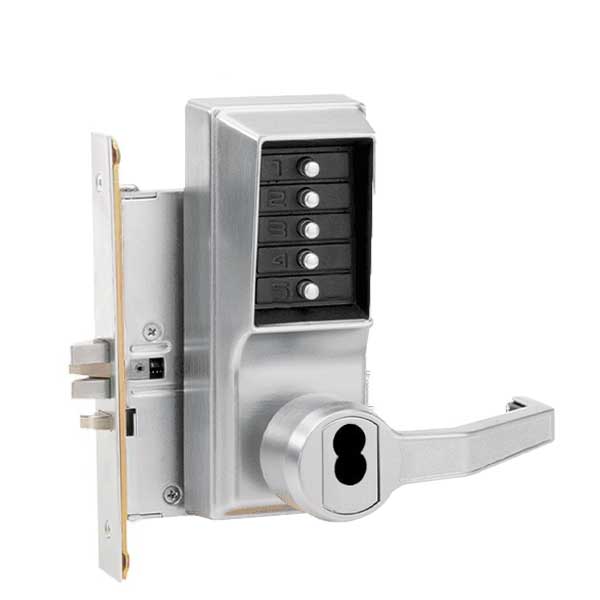

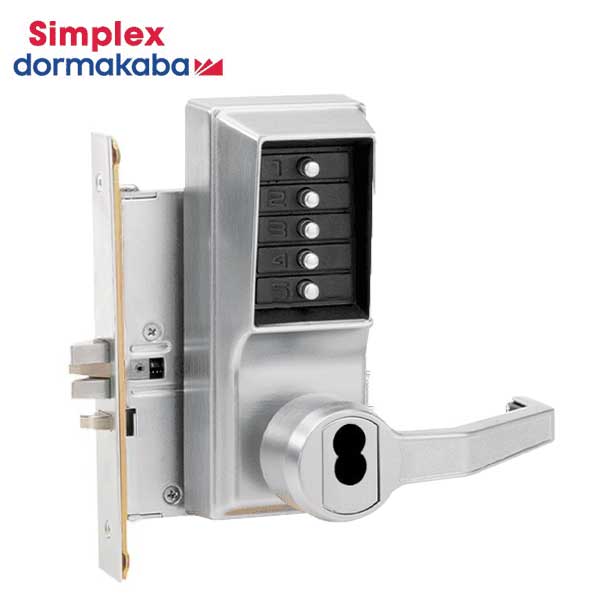

Simplex - R8146B - Mechanical Pushbutton Mortise Lever Set - Combination/Passage/Lockout - SFIC - 2Ā¾" Backset - Satin Chrome - RH
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex 8100 Mechanical pushbutton lock, with mortise locking device, lever handle, and provides exterior access by combination, while allowing free egress. Combination, Passage, Lockout, and Key Override Entry. core not included
Features:
- Fully mechanical lock eliminates the material and labor expense of battery replacements
- Single access codeāone easy-to-manage code for all users
- Lock is easily programmed via keypad without removing lock from the door
- Factory-handed for Right Hand; not field reversible
- Key Override: Small Format Interchangeable Cores (SFIC)
- Pushbutton Access
- Passageāallows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
- Lockoutādisables the lock from the inside so that the entry codes cannot be used to gain access. Access is permitted using key override.
Specifications:
Construction: |
Cast front housing; unified trim plate; fixed ADAācompliant levers |
Locking Device: |
Mortise with Ā¾" (19 mm) two-piece anti-friction latch |
Numeric Keypad: |
Vandal resistant, solid metal pushbuttons |
Handing: |
Factory-handed for Right Hand; not field reversible |
Finish: |
Satin Chrome 26D (626) |
Key Override: |
SFIC, Best and Equivalents (6 or 7-pin length); core not included |
Backset: |
2Ā¾" (70 mm) |
Latch: |
Ā¾" (19 mm) two-piece anti-friction latch |
Minimum Stile Recommended: |
5" (127 mm) |
Strike: |
4ā " (124 mm) L x 1Ā¼" (32 mm) W x Ā¼" (6 mm) D Deadbolt/Latch mortise strike plate |
Door Preparation: |
Easily installs on wood or metal doors. Standard (86) mortise preparation |
Door Thickness: |
1Ā¾" (44 mm) to 2Ā¼" (57 mm) |
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
Certification: |
BAA/NAFTA Certified |
Fire Rating: |
3-hour UL/ULC fire rating for "A" label doors |
Warranty: |
3 years manufacturer warranty |
Downloads:
- Installation Guide
- Spec Sheet
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
Original: $588.09
-65%$588.09
$205.83Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex 8100 Mechanical pushbutton lock, with mortise locking device, lever handle, and provides exterior access by combination, while allowing free egress. Combination, Passage, Lockout, and Key Override Entry. core not included
Features:
- Fully mechanical lock eliminates the material and labor expense of battery replacements
- Single access codeāone easy-to-manage code for all users
- Lock is easily programmed via keypad without removing lock from the door
- Factory-handed for Right Hand; not field reversible
- Key Override: Small Format Interchangeable Cores (SFIC)
- Pushbutton Access
- Passageāallows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
- Lockoutādisables the lock from the inside so that the entry codes cannot be used to gain access. Access is permitted using key override.
Specifications:
Construction: |
Cast front housing; unified trim plate; fixed ADAācompliant levers |
Locking Device: |
Mortise with Ā¾" (19 mm) two-piece anti-friction latch |
Numeric Keypad: |
Vandal resistant, solid metal pushbuttons |
Handing: |
Factory-handed for Right Hand; not field reversible |
Finish: |
Satin Chrome 26D (626) |
Key Override: |
SFIC, Best and Equivalents (6 or 7-pin length); core not included |
Backset: |
2Ā¾" (70 mm) |
Latch: |
Ā¾" (19 mm) two-piece anti-friction latch |
Minimum Stile Recommended: |
5" (127 mm) |
Strike: |
4ā " (124 mm) L x 1Ā¼" (32 mm) W x Ā¼" (6 mm) D Deadbolt/Latch mortise strike plate |
Door Preparation: |
Easily installs on wood or metal doors. Standard (86) mortise preparation |
Door Thickness: |
1Ā¾" (44 mm) to 2Ā¼" (57 mm) |
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
Certification: |
BAA/NAFTA Certified |
Fire Rating: |
3-hour UL/ULC fire rating for "A" label doors |
Warranty: |
3 years manufacturer warranty |
Downloads:
- Installation Guide
- Spec Sheet
