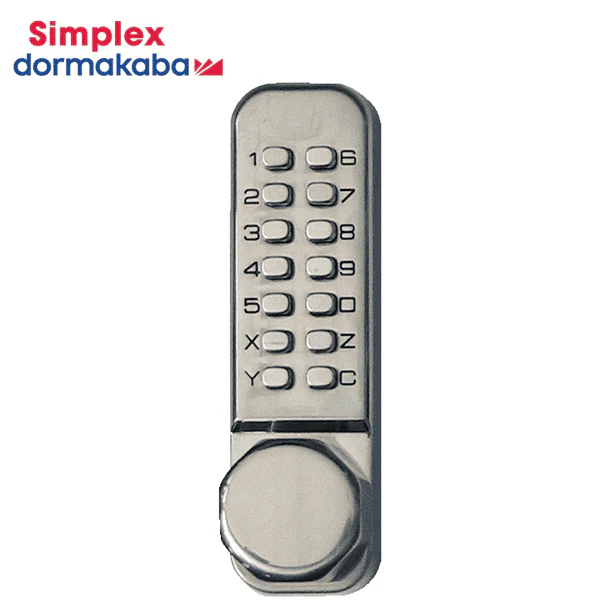

Simplex - LD451 - Mechanical Pushbutton Knob Lock - Latch Holdback - 2⅜" Backset - Satin Stainless

List Price: 152.00

KABA-LD4513532D41

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex 450 Series mechanical pushbutton locks provides exterior access by combination.

Features:

• Fully mechanical lock eliminates the material and labor expense of battery replacements
• Single access code (non-sequential)—one easy-to-manage code for all users
• Lock is easily programmed via keypad once removed from door
• Pre-assembled for right-hand door installations (easily changed in field)
• Pushbutton Access
• Latch Holdback (easily removed in field)




Specifications:

Construction:	Solid cast housings; cast knobs and levers
Locking Device:	Tubular Latch Bolt, Latch Holdback, 2⅜" (60 mm) backset
Numeric Keypad:	Vandal resistant, metal pushbuttons
Handing:	Non-handed, pre-assembled for right-hand door installations (easily changed in field)
Finish:	Satin Stainless 32D (630)
Knob:	Octagon Knob
Backset:	2⅜" (60 mm) backset
Latch:	Latch Holdback, ½" (51 mm) latch
Door Preparation:	Easily installs on wood or metal doors. Requires four holes (two for through bolts, one for latch spindle, and one for latch support post).
Door Thickness:	1⅜ " (35 mm) to 2½ " (64 mm)
Certification:	BAA/NAFTA Certified
Warranty:	1 year manufacturer warranty

Downloads:

• Installation Guide
• Spec Sheet
