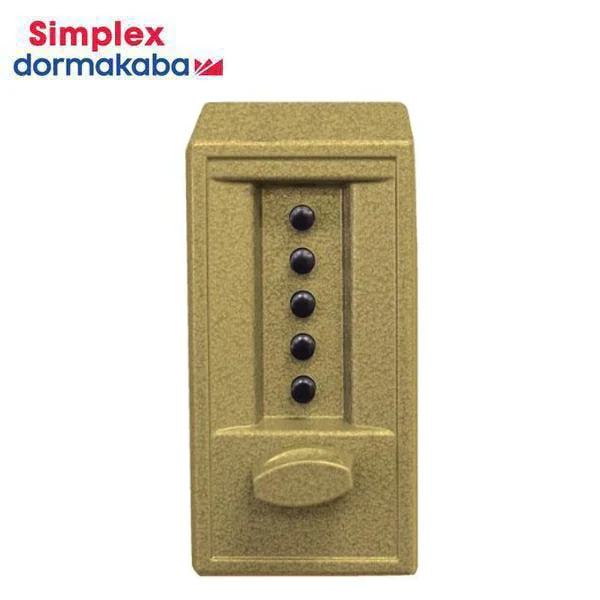

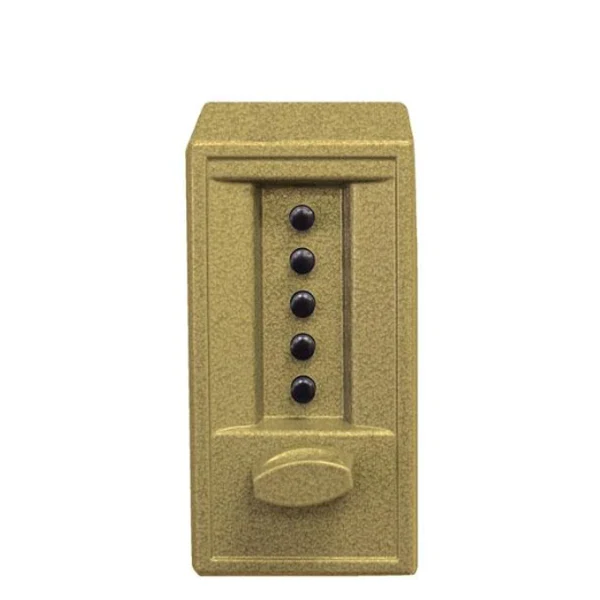

Simplex - 6202 - Pushbutton Cylindrical Keyless Lock - 2⅜" Backset - Gold Tone

Simplex - 6202 - Pushbutton Cylindrical Keyless Lock - 2⅜" Backset - Gold Tone

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. Simplex 6000 provides fully mechanical exterior access by combination, while allowing free egress at all times by interior knob.

Features:

  • Exterior Thumbturn
  • Internal Knob
  • Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Single access code—one easy-to-manage code for all users
  • Lock is easily programmed via keypad without removing lock from the door
  • Factory-handed left; easily field reversible
  • Pushbutton access


Specifications:


Construction:

 All metal cast front housing, force-resistant, clutch-protected exterior thumbturn, unified interior trim plate, fixed interior knob

Locking Device:

 Cylindrical ½" (13 mm) throw latch, floating face plate, 2⅜" (60 mm) backset (UL listed)

Numeric Keypad:

 Vandal resistant, solid metal pushbuttons

Handing:

 Factory-handed left; easily field reversible

Finish:

 Gold Tone Finish

Key Override:

 Keyless Lock

Backset:

 2⅜" (60 mm) backset

Latch:

 ½" (13 mm) throw latch, floating faceplate

Minimum Stile Recommended:

 5" (127 mm)

Strike:

 Standard strike plate

Door Preparation:

 ASA 161 door preparation with two additional through bore holes. Lock can be inverted if the existing auxiliary lock obstructs installation.

Door Thickness:

 1⅜" (35 mm) to 2¼" (57 mm); wood or metal

Accessibility Standard:

Americans with Disabilities Act (ADA)

Certification:

BAA/NAFTA Certified

Fire Rating:

3-hour UL/ULC fire rating for "A" label doors

Warranty:

1 year manufacturer warranty

Downloads:

  • Installation Guide
  • Spec Sheet


    Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page     here. Once you have the ticket contact UHS Hardware for the return.

    $66.47

    Original: $189.91

    -65%
    Simplex - 6202 - Pushbutton Cylindrical Keyless Lock - 2⅜" Backset - Gold Tone—

    $189.91

    $66.47
