Simplex - 5041S - Mechanical Pushbutton Cylindrical Lever Set - FSIC - Winston Lever Set - 2Ā¾" Backset - Dark Bronze - Grade 1

Simplex - 5041S - Mechanical Pushbutton Cylindrical Lever Set - FSIC - Winston Lever Set - 2Ā¾" Backset - Dark Bronze - Grade 1

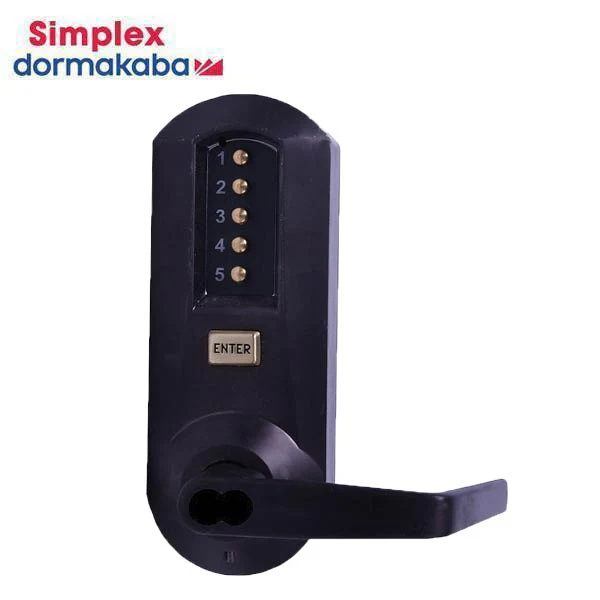

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. This fully mechanical lock eliminates the material and labor expense of battery replacements, The Simplex 5000 Series provides exterior access by combination, while allowing free egress. Core Not Included

Features:

  • Combination Entry
  • Key Override: Schlage Interchangeable Core (FSIC )
  • Exterior Combination Change
  • Passage-allows access without using the lock access code. Feature activated from the inside with a thumbturn or key
  • Single access codeā€”one easy-to-manage code for all users
  • Lock is easily programmed via keypad without removing the lock from the door
  • Non-handed, pre-assembled for left-hand door installationsā€”easily changed in the field


Specifications:


Construction:

 Extra heavy-duty solid cast housings; solid cast levers.

Locking Device:

 Cylindrical Ā½" (13 mm) throw latch, floating face plate, 2Ā¾" (70 mm) backset (UL listed)

Numeric Keypad:

 Vandal resistant, metal pushbuttons

Handing:

 Non-handed, pre-assembled for left-hand door installationsā€”easily changed in the field

Finish:

 Satin Chrome 26D (626)

Key Override:

 FSIC Prep, Schlage; core not included

Backset:

 2Ā¾" (70 mm) backset

Latch:

 Ā½" (13 mm) throw latch

Minimum Stile Recommended:

 5" (127 mm)

Door Preparation:

 Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.

Door Thickness:

 Cylindrical: 1ā…œ" (35 mm) to 2Ā¼" (57 mm). Pre-assembled to accommodate doors 1ā…" (41 mm) to 2" (51 mm).

Accessibility Standard:

Americans with Disabilities Act (ADA)

Certification:

ANSI/BHMA Grade 1 Certified

Fire Rating:

3-hour UL/ULC fire rating for "A" label doors

Warranty:

3 years manufacturer warranty

Downloads:

  • Installation Guide
  • Spec Sheet


    Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page     here. Once you have the ticket contact UHS Hardware for the return.
