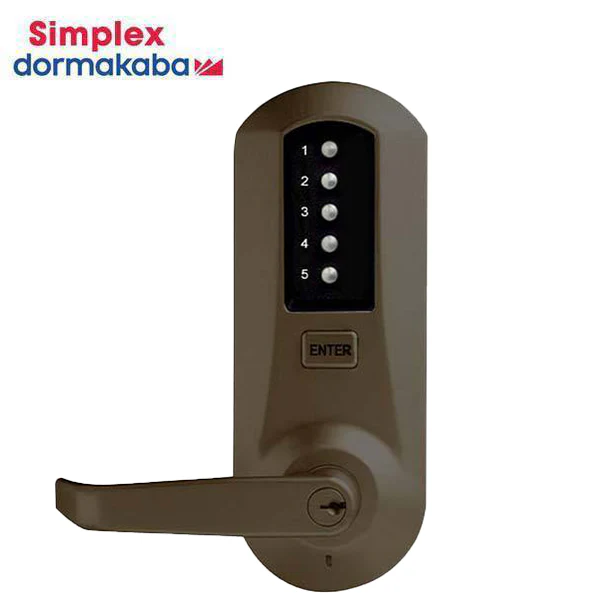

Simplex - 5021XK - Mechanical Pushbutton Cylindrical Lever Set - Kaba 90 - Winston Lever Set - 2¾" Backset - Oil Rubbed Bronze - Grade 1
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. This fully mechanical lock eliminates the material and labor expense of battery replacements, The Simplex 5000 Series provides exterior access by combination, while allowing free egress.
Features:
- Combination Entry
- Key Override: Key-in-lever Cylinder.
- Exterior Combination Change
- Single access code—one easy-to-manage code for all users
- Lock is easily programmed via keypad without removing the lock from the door
- Non-handed, pre-assembled for left-hand door installations—easily changed in the field
Specifications:
Construction: |
Extra heavy-duty solid cast housings; solid cast levers. |
Locking Device: |
Cylindrical ½" (13 mm) throw latch, floating face plate, 2¾" (70 mm) backset (UL listed) |
Numeric Keypad: |
Vandal resistant, metal pushbuttons |
Handing: |
Non-handed, pre-assembled for left-hand door installations—easily changed in the field |
Finish: |
Oil Rubbed Bronze Finish |
Key Override: |
K-I-L, Kaba Cylinder (Kaba 90 Keyway) included |
Backset: |
2¾" (70 mm) backset |
Latch: |
½" (13 mm) throw latch |
Minimum Stile Recommended: |
5" (127 mm) |
Door Preparation: |
Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes. |
Door Thickness: |
Cylindrical: 1⅜" (35 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (51 mm). |
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
Certification: |
ANSI/BHMA Grade 1 Certified |
Fire Rating: |
3-hour UL/ULC fire rating for "A" label doors |
Warranty: |
3 years manufacturer warranty |
Downloads:
- Installation Guide
- Spec Sheet
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
Original: $522.11
-65%$522.11
$182.74Product Information
