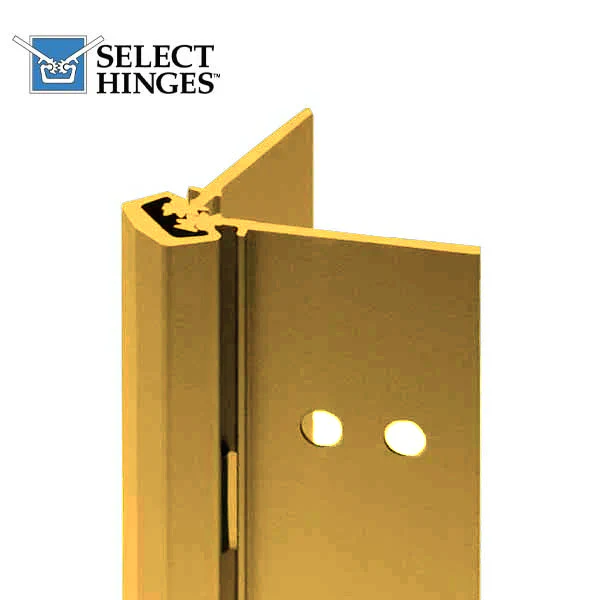

Select Hinges - SL27 LL - Heavy Duty Concealed Geared Continuous Hinge - 95" - 8'0" Door - Champagne Finish

Concealed edge mount architectural grade aluminum hinges. No mortise is required. For new construction or renovation/retrofit. Hinge failure is the most common cause of entrance failure. THe revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure.

Features:

• For 2" to 2-1/4" doors, up to 1,000 lb
• Frame leaf covers butt hinge preps
• Staggered hole pattern
• Flush mounted (no door inset)
• SL27 LL geared continuous hinges are BHMA grade 1 certified
• Lifetime lubrication
• Anodized after machining
• Consistent templating

Specifications:

Length	95" (for 8'0" door)
Load/Frequency	For 2" to 2-1/4" doors. For low-frequency doors up to 1,000 lb. Including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy, or wide doors
Continuous Hinge Type	Full Mortise (Concealed)
Usage	Heavy Duty
Buy American Act Compliance	Meets Buy American Act - Made in USA
Fire Rating	All SELECT hinges have been UL tested and listed to 90-minute Fire Rating Standards without fire pins or studs - at no extra cost
ANSI/BHMA Standard	ANSI/BHMA A156.26-2006 Grade 1
Material	Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings
Finish	Champagne
