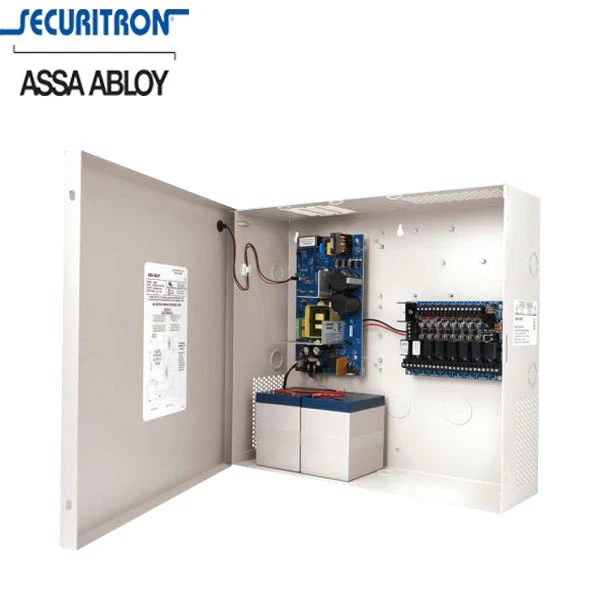

Securitron - PS220 - Power Supply - 1 Amp - 12VDC/24VDC
The Securitron AQD1 Series of switching power supplies are dual voltage, UL listed,
supervised units. These units are field selectable with an integrated battery charging
circuit. They provide 1 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.
Features:
- Typical output: 13.5 / 27.2 VDC
- Low noise design with ripple as low as 68mV p-p
- Power supply outputs are Class 2 power limited
- Expandable up to 16 independently controlled power limited outputs
- Available with configurable access control input/outputs with fire trigger in either PTC or with fuse/dry contact option, fire relay only, or configurable outputs with fire relay input
- LED indicators and form "C"contacts for supervision
- Supports up to two (2) sealed gel, AGM or wet lead acid batteries
Specifications:
| Typical Voltage | 13.5 / 27.2 VDC |
| AC Input Voltage | 12V DC/24V DC |
| AC Frequency | 60 Hz |
| DC Output Voltage | 12V DC/24V DC |
| Output Current (Amps) | 1A |
| LED’s | Red = A/C Power indicator • Green = D/C Output indicator |
| Electrical: | Operating Temp: -4 to +122F [-20 to +50C] |
| Dimensions | 14" x 14" x 4-3/4" |
| Certifications | UL Listed |
Downloads:
