SECURAM - Electronic Safe Lock Body ONLY - SwingBolt - Optional Configuration

This is an Electronic Safe Lock Body ONLY

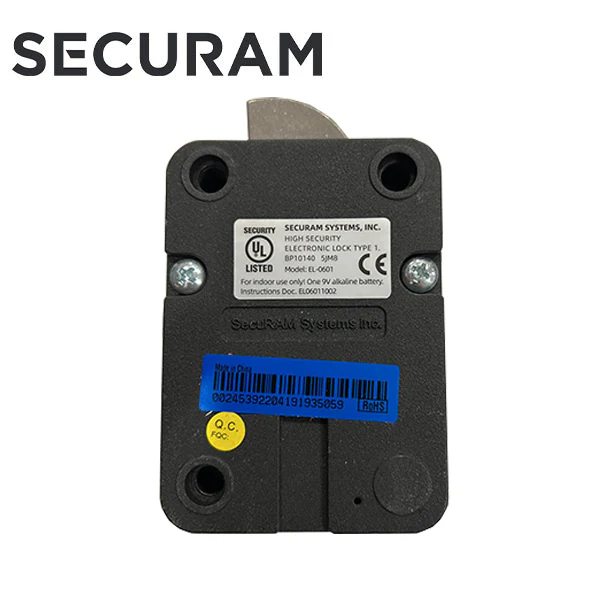

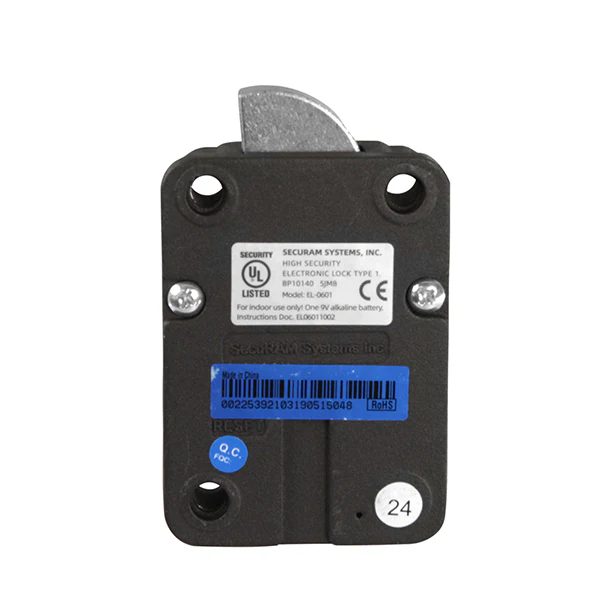

• SECURAM SwingBolt Lock Body
• The SwingBolt is SECURAM's most popular lock body. It is designed to work in conjunction with most safe boltwork systems.


• Analog Configuration - Blue Sticker
• ProLogic Digital Configuration - Yellow Sticker
• ScanLogic Digital Configuration - Green Sticker

SwingBolt Lock Body Features:

• SwingBolt lock body can be used to replace any standard-sized safe lock
• Can be easily retrofitted on most safes.
• UL Listed Type 1
• Motor-driven
• Stainless steel bolt and internal moving parts
• Unique two-thousand-time heavy-duty aging test on each unit to ensure reliability
• Patented design offers ultra-low power consumption-only 1/10 of similar products on the market

Lock body operation:
Upon entry of a valid code, the motorized locking mechanism moves to its unlocked position, allowing the safe bolt work to rotate the bolt into the lock case. The lock remains unlocked for 6 seconds and then automatically relocks. When the safe door is closed and the safe handle returned to the locked position, the lock will automatically lock securely.

As with all SECURAM lock bodies, the SwingBolt can operate in two modes:

• Analog mode for use with SafeLogic Series EntryPads - Blue Sticker
• Digital mode for use with ProLogic and ScanLogic EntryPad

The lock can be used to replace any standard sized safe lock and can be easily retrofitted on most safes.

See the Analog versus Digital Mode video below for instructions to convert the lock from one mode to the other.
