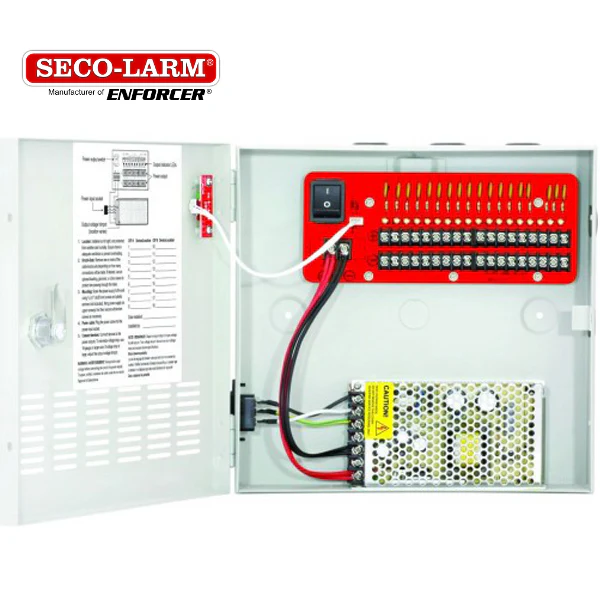

Seco-Larm - SLM-PC-U1810-PULQ - Switching CCTV Power Supply - 18 Outputs - 10 Amp
ENFORCER 12VDC Switching CCTV Power Supply is an efficient solution for powering CCTV installations. Each unit distributes power to multiple CCTV devices and provides short circuit and overheat protection.
- 100~220 VAC Input
- Adjustable output to reduce voltage drop
- Each output individually protected by a PTC fuse
- PTC fuses rated [email protected]~13.8 VDC
- Power output ON/OFF switch
- Individual output status LEDs
- Convenient AC input and DC output status LEDs on cover
- Heavy-duty steel case with cover
- Built-in short circuit and overheat protection
- 3.3ft (1m) Power cord included
Specifications
| Outputs | 18 |
| Total supply current | 10A |
| Max. current per output | 1.1A |
| Output fuse | PTC |
| Output voltage | 11.0~13.8 VDC (adjustable by trimpot, Ā±10% (47~63 Hz) |
| Input voltage | 100~220 VAC Ā±10% (47~63 Hz) |
| LED indicators | Cover -Green: AC Input, Red: DC Output PDM -Red: DC Output |
| Operating humidity | 90% (non-condensing) |
| Operating temperature | 32Ā°~104Ā° F (0Ā°~40Ā° C) |
| Dimensions | 10"x10-5/16"x3-1/8" (254x262x79 mm) |
| Weight | 5-lb 2-oz (2.31kg) |
$71.10
Seco-Larm - SLM-PC-U1810-PULQ - Switching CCTV Power Supply - 18 Outputs - 10 Ampā
$71.10
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
ENFORCER 12VDC Switching CCTV Power Supply is an efficient solution for powering CCTV installations. Each unit distributes power to multiple CCTV devices and provides short circuit and overheat protection.
- 100~220 VAC Input
- Adjustable output to reduce voltage drop
- Each output individually protected by a PTC fuse
- PTC fuses rated [email protected]~13.8 VDC
- Power output ON/OFF switch
- Individual output status LEDs
- Convenient AC input and DC output status LEDs on cover
- Heavy-duty steel case with cover
- Built-in short circuit and overheat protection
- 3.3ft (1m) Power cord included
Specifications
| Outputs | 18 |
| Total supply current | 10A |
| Max. current per output | 1.1A |
| Output fuse | PTC |
| Output voltage | 11.0~13.8 VDC (adjustable by trimpot, Ā±10% (47~63 Hz) |
| Input voltage | 100~220 VAC Ā±10% (47~63 Hz) |
| LED indicators | Cover -Green: AC Input, Red: DC Output PDM -Red: DC Output |
| Operating humidity | 90% (non-condensing) |
| Operating temperature | 32Ā°~104Ā° F (0Ā°~40Ā° C) |
| Dimensions | 10"x10-5/16"x3-1/8" (254x262x79 mm) |
| Weight | 5-lb 2-oz (2.31kg) |
