Seco-Larm - SLM-MVE-AH1E1-01NQ - HDMI Extender over Single Cat5e/6 - 4K - Up to 164ft (50m)

SLM-MVE-AH1E1

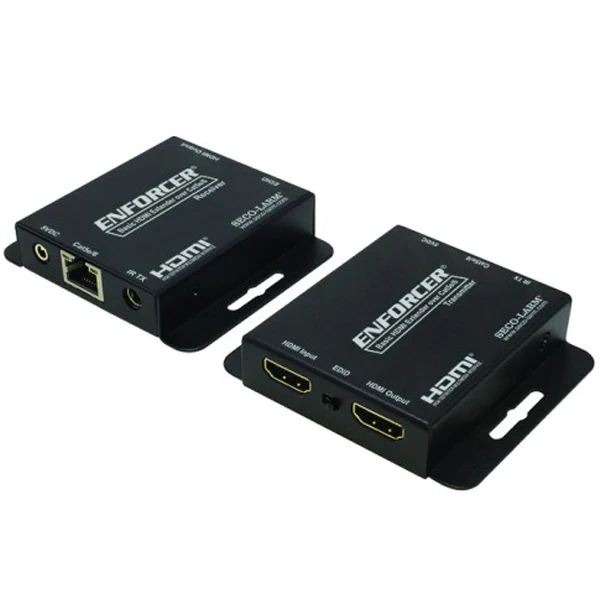

ENFORCER HDMI Extender over Single Cat5e/6 extends the range of traditional HDMI cabling methods by using an active transmitter and receiver to send video and audio over a single Cat5e/6 cable. HDMI formats as large as 1080p can be transmitted up to 164ft (50m) between the two units with zero signal loss by using integrated circuits in the receiver and transmitter. The extender also supports HDMI loop output, EDID management settings, and one way IR control for remotely controlling HDMI sources and displays.

• Extend HDMI over a single Cat5e/6 cable
• Supports resolutions from 480i to 1080p with zero signal loss
• Transmits up to 164ft (50m) at 1080p over Cat5e/6 cable
• HDMI Loop output for local HDMI displays
• Plug and play operation – comes as a complete set
• IR Pass-through for remote control extension and operation
• EDID Management switch
• Two (2) 5VDC power supplies included





Specifications

Input Video Signal	3.3V
Input DDC Signal	5Vp-p (TTL)
Deep Color	24-Bit
Video Format Supported	High-speed HDMI, HDCP 1.2
Audio Formats Supported	LPCM, Dolby-AC3, DTS7.1, DSD
Output Video	HDMI®
Resolutions Supported	1080p/1080i/720p/576p/576i/480p/480i
Range - 4K	Up to 164' (50m)
Video Amplifier Bandwidth	4.95Gbps
Maximum Input Cable Length	24AWG (15m), 26AWG (10m), 28AWG (5m)
Video Input Connector	HDMI Type A 19-pin female
IR Pass-through Frequency	30~60 kHz
Operating Voltage	5VDC
Power Supply	1A@5VDC (2 Adapters) (2.1mm plug)
ESD Protection (Human Body Model)	±8kV (Air-gap discharge), ±4kV (contact discharge)
Cat5e/6 Wiring Standard	T568-B
Current Draw	Transmitter- 300mA@5VDC Receiver- 200mA@5VDC
Operating Temperature	32°~104° F (0°~40° C)
Operating Humidity	20~90% RH (no condensation)
Dimensions	31/8"x11/16"x25/8" (79x17x67 mm)
Weight	5.3-oz (150g) (Each)
Maximum Single Link Range	1080p
