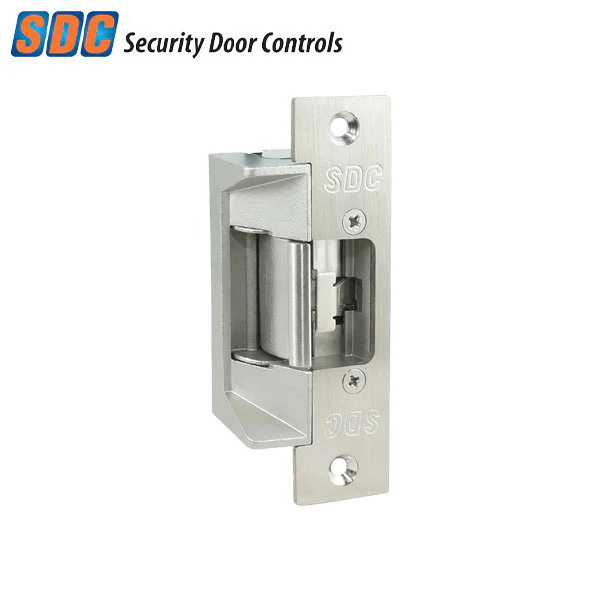

SDC - 45F-4SU - Electrified Cylindrical Strike - Fail Safe / Fail Secure - Full Monitoring - Fire Rated - Satin Stainless Steel
SDC’s 45 series 5/8” latchbolt electric strikes are centerline latch entry strikes designed for use with cylindrical locksets and mortise locksets without deadbolt for both metal and wood frames. 45 series strikes accept 5/8” throw latchbolts or up to ¾” throw latch bolts with 1/8” door gap. Built with all stainless steel parts, a durable die cast body and fewer moving parts for maximum lifespan and corrosion resistance, the quality construction makes 45 series strikes ideal for high traffic applications. The compact low profile design enables quick and easy installation where jamb space is limited.
Features:
- Low profile
- Fewer moving parts
- Stainless steel components
- Durable die-cast housing body
- Corrosion-resistant
- Horizontal alignment adjustment
- Mounting tabs included
- Non-handed
- Interchangeable faceplate design
- Internally mounted solenoid
- Field selectable operation
- Field selectable dual voltage
| Current Draw: | 200 mA @ 12 VDC 100 mA @ 24 VDC |
| Monitoring Contacts: | SPDT 3 Amp @ 30 VDC Resistive |
| Latchbolt: | 9/16” Throw, Up to 5/8” Throw with 1/8” Door Gap |
| Input: | 12/24 VDC ± 10% |
| Static Strength: | 1,500 lbs |
| Dynamic Strength: | 70 lbs |
| Endurance Cycles: | 250,000 |
| Keeper Depth: | 0.8125" |
| Weight: | 2 lbs |
| Faceplates: | (4S) Square Corner Stainless Steel, 47/8” x 11/4” |
| Frame Application: | (45F-4S) Hollow Metal |
| Manufacturer Warranty: | 5 Years |
| Certifications: | UL 1034, UL 10C, ANSI/BHMA A156.31 |
Downloads:
Original: $313.88
-65%$313.88
$109.86Product Information
