SDC - 422U - Single Gang Square Push Button Switch - 2" - SPDT - Momentary - 12/24VDC - 630 - Dull Stainless Steel

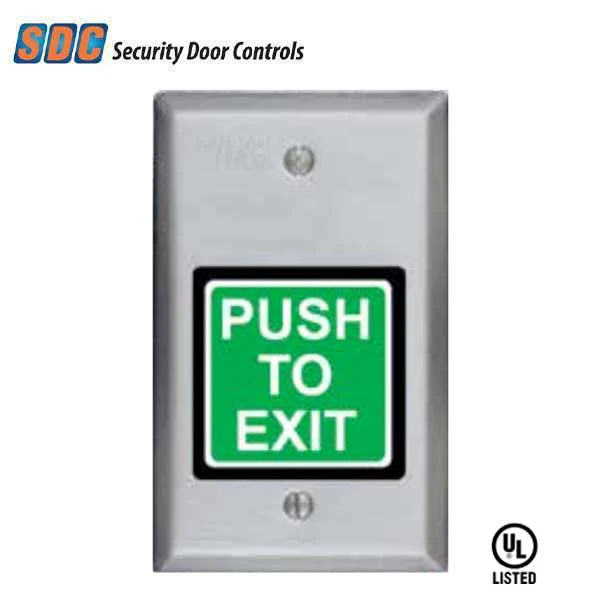

The SDC 422U Single Gang Square Push Button Switch, is an illuminated switch button two inches squared for easy activation and is visually conspicuous. The high impact resistant material stands up to abuse. The “PUSH to EXIT” sign complies with NFPA requirements.
Features:
- Green Illuminated Switch Button
- Dull Stainless Steel Finish
- Push-to-Exit Sign
- Green Lens
- Momentary
Specifications:
| Construction: | Stainless Steel |
| Switch Contact: | SPDT, 5 Amp @ 30VDC Resistive |
| Switch Type: | Momentary |
| Timer Contacts: | SPDT 2 Amp @ 12/24VDC |
| Finish: | 630 - Dull Stainless Steel |
| Wire Leads: | 6”, 20 Gauge |
| 1 Gang: | 2 7/8” x 4 1/2” x 20 Ga. |
| Certifications: | UL Listed |
| Warranty: | Manufacturer 5 Year Warranty |
Downloads:
$19.47
Original: $55.63
-65%SDC - 422U - Single Gang Square Push Button Switch - 2" - SPDT - Momentary - 12/24VDC - 630 - Dull Stainless Steel—
$55.63
$19.47Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The SDC 422U Single Gang Square Push Button Switch, is an illuminated switch button two inches squared for easy activation and is visually conspicuous. The high impact resistant material stands up to abuse. The “PUSH to EXIT” sign complies with NFPA requirements.
Features:
- Green Illuminated Switch Button
- Dull Stainless Steel Finish
- Push-to-Exit Sign
- Green Lens
- Momentary
Specifications:
| Construction: | Stainless Steel |
| Switch Contact: | SPDT, 5 Amp @ 30VDC Resistive |
| Switch Type: | Momentary |
| Timer Contacts: | SPDT 2 Amp @ 12/24VDC |
| Finish: | 630 - Dull Stainless Steel |
| Wire Leads: | 6”, 20 Gauge |
| 1 Gang: | 2 7/8” x 4 1/2” x 20 Ga. |
| Certifications: | UL Listed |
| Warranty: | Manufacturer 5 Year Warranty |
Downloads:
