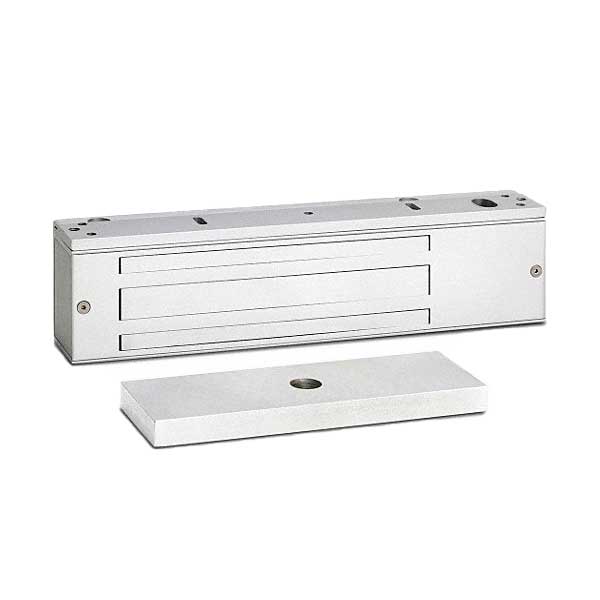

SDC - 1581 - Single Magnetic Lock - Surface Mount - 650lbs. - Optional Door Position Sensor - 12/24VDC - Satin Aluminum - Grade 1
The SDC 1500 series EMLocks® are easy to stock, install, upgrade, and maintain. They include a lifetime warranty and have 650lbs of holding force. Compatible with any access control system, all EmLocks® are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxyless design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws.
Features:
- Comes with 650lb Holding Forces
- Autosensing 12/24 VDC Voltage Input
- Optional Door position sensor. Indicates door open and door closed
- Uniform Design & Installation
- Identical Housing, Template & Accessories
- Quick Mount Assembly
- Modular Design & Modular Field Upgrade Kits (Sold Separately)
- Field Upgradeable Without Removing From Frame
- ANSI/BHMA Grade 1 Compliant
- UL 294 : Standard for Access Control System Units
Specifications:
| Construction: | Solid Metal |
| Lock Function: | Electromagnetic Lock |
| Holding Force: | 650 LB / 295 KG |
| Voltage: | 12/24VDC Voltage Sensing Input |
| Current: | 220mA @ 24VDC; 440mA @ 12VDC |
| Door Position Sensor: | SPDT Dry, 250 mA @ 30VDC |
| Dimensions: | 8-3/4”L x 2-1/8”H x 1-1/4”D |
| Finish: | Satin Aluminum - 628 |
| Certifications: | ANSI/BHMA Grade 1 Compliant. UL 294 Listed |
| Warranty: | Manufacturer Lifetime Warranty |
Downloads:
Original: $286.62
-65%$286.62
$100.32Product Information
