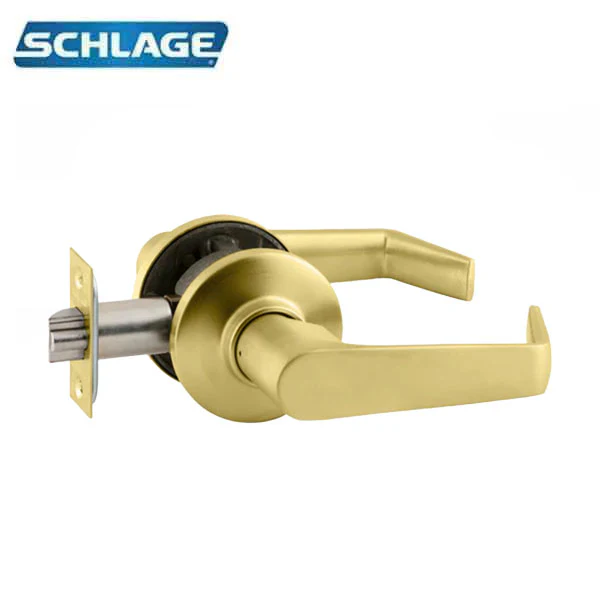

Schlage - S10D - S Series Tubular Lock - Passage/Closet Latch - Non-Handed - Satin Brass - Grade 2
Schlage's S-Series locks provide reliable, cost-effective performance for entrance doors and interior passages where heavy-duty levers may not be required. This unkeyed lever lock is specially designed for both light/medium commercial and multi-housing applications. It features heat-treated steel locking components for extra strength. Two independent heavy-duty torsion springs add durability and long life.
Features:
- Exceeds ANSI/BHMA Grade 2 requirements
- UL listed for 3-hour fire door
- Heat-treated steel locking components for extra strength
- Patented Everest 29ā¢ S123 keyway is provided standard which prohibits unauthorized key duplication
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
- Six functions include keyless, dummy, and single-cylinder options
- Adjustable backset has a lock-in-place helix design
- Independent heavy-duty lever torsion springs for durability and long life
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength testsĀ
Specifications
| Chassis | Tubular Construction. Zinc with steel coverĀ |
| Material | Pressure cast zincĀ |
| Door Thickness | 1-3/8ā³ to 2ā³ |
| Lock Function | Passage Function (F75) |
| Handing | Non-Handed |
| Lever | Saturn Lever (SAT) |
| Rose | Wrought brass, bronze or zinc plated to match finish specification |
| Finish | 606 - Satin Brass |
| Backset | 2 3ā4" |
| Faceplate Size | 1" x 2 1ā4" square corners |
| Latch | 1/2ā throw, deadlocking ā 1-1/8" x 2-1/4" face |
| Strike |
Ā T-Strike 1/8ā x 2 3/4ā x 1 1/8ā lip to center with box standard |
| Fire Rated | UL/cUL listed up to 3 Hours ā UL symbol on the latch front |
| Certifications |
Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability |
| Manufacturer Warranty | Commercial: Three-year Manufacturers limitedĀ |
Ā
