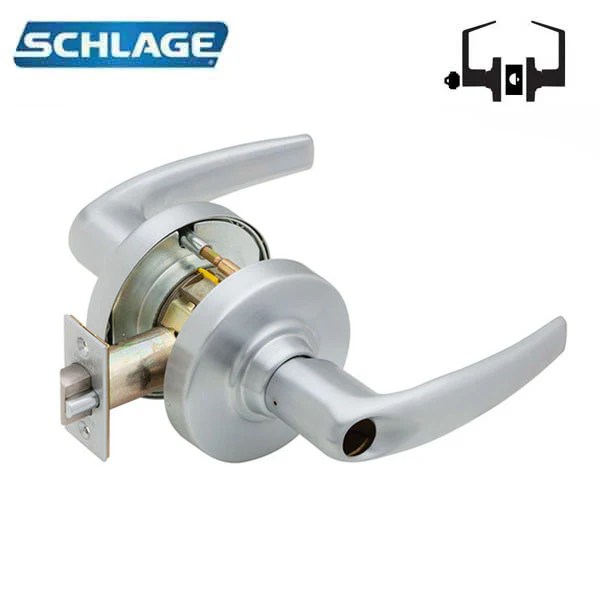

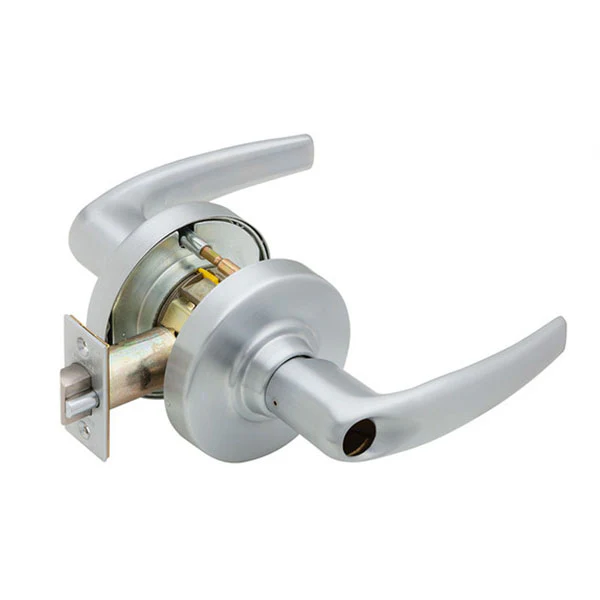

Schlage - ND96LD - Commercial Lever Set - Athens Lever - Less Cylinder - Storeroom - Non-Handed - Satin Chrome - Grade 1
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
Features
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- Fire Rated for 3 Hours
- Less Conventional Cylinders
- ATH - Athens Lever Style
- Support for 10 non-Schlage cores
Specifications
| Lock Function | F86 - Storeroom - Outside Lever Always Disengaged, Entrance by Key Only, Inside Lever Always Unlocked for Immediate Egress |
| Handing | Non-Handed |
| Door Thickness | 1-5/8" to 2-1/8" (41 to 54 mm) |
| Faceplate Size | Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled. |
| Cylinder & Keyway | 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock. |
| Backset | 2 3/4” (70 mm) standard. |
| Latch Bolt |
Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors. |
| Lock Chassis |
Zinc plated for corrosion resistance. |
| Lever | ATH - Athens Style |
| Material | Stainless Steel / Zinc |
| Rose |
3-7/16" |
| Strike | ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. |
| Finish | 626 - Satin Chrome |
| Certifications |
ANSI/BHMA A156.2-2003, Exceeds 800,000 ANSI Cycles, Meets FF-H-106C Series 161, MEA Certification, Grade 1, Fire Rated for 3 Hours |
| Manufacturer Warranty | 10 years mechanical, 1 year wired electrified |
Downloads
Catalog
Installation Instructions
$165.20
Original: $472.00
-65%Schlage - ND96LD - Commercial Lever Set - Athens Lever - Less Cylinder - Storeroom - Non-Handed - Satin Chrome - Grade 1—
$472.00
$165.20Product Information
