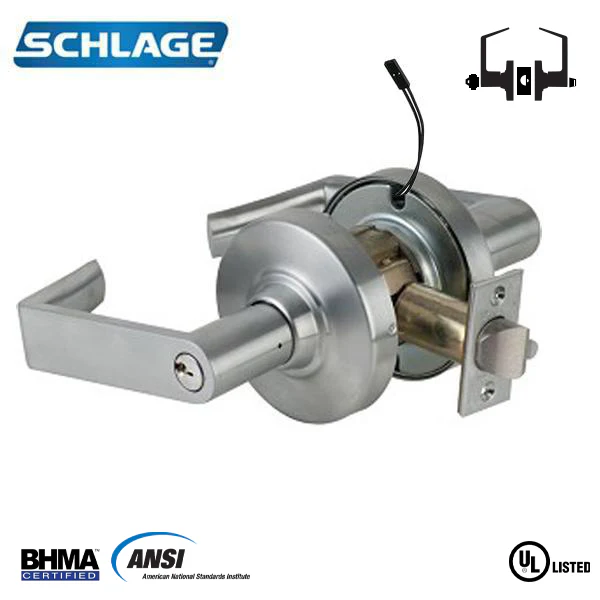

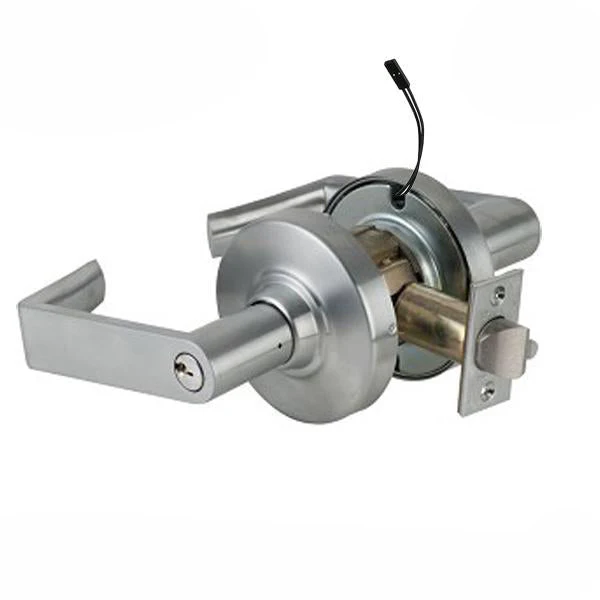

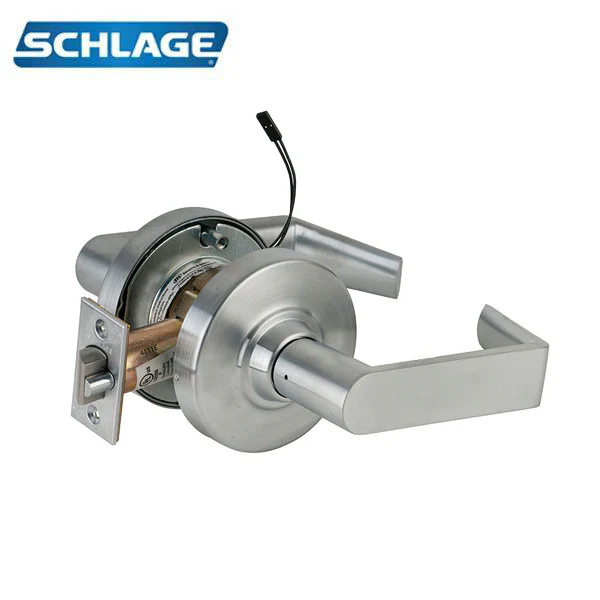

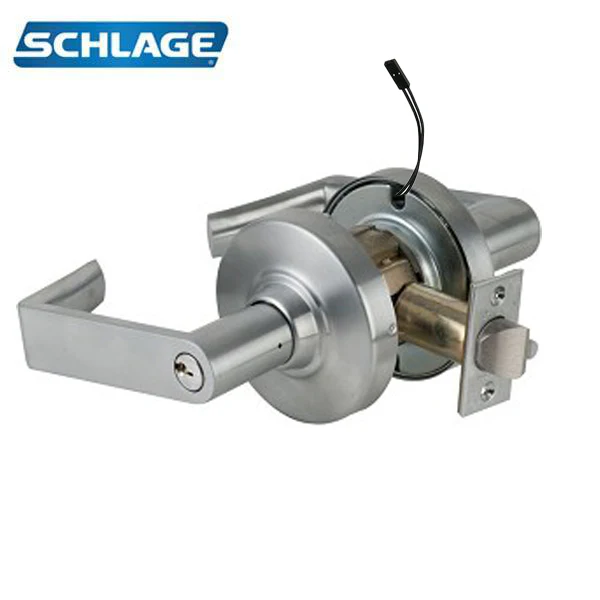

Schlage - ND80PDEU - ND Wired Electrified Lever Set - Rhodes Lever Set- 24V AC/DC - Storeroom - Grade 1

The Schlage ND Wired Electric Series Wired electrified locks complement the mechanical offerings and are typically incorporated into a wired access control system or used independently with a remote access switch (e.g. switch behind a receptionist desk). It features universal input voltage and auto-detects 12 through 24 VDC for installation flexibility.

More Information Below

Lock Function	Storeroom function (outside cylinder) ND80PDEU: Electrically unlocking/fail secure
Handing	Non-Handed
Door Thickness	1 5/8" to 2 1/8" Thick (41MM-54MM) standard
Cylinder	6 Pin Keyway Schlage Standard with two patented nickel silver keys per lock
Backset	2 3/4" (70 mm) only
Latch	1/2" Steel (12MM) Throw, deadlocking on the keyed functions
Material	Stainless Steel / Zinc Plated for corrosion resistance
Faceplate	Stainless steel - 1 1/8" x 2 1/4" (29MM x 57MM) Square Corner, Beveled
Time Lever Style	Rhodes Stye Lever
Finish	626 - Satin Chrome
Electrical Requirement	24V AC, .35 amps or 24V DC, .15 amps.
Certifications	ANSI/BHMI Certified A156.13-2012 Commercial Grade 1 Lock Body Mortises Inside the Edge of the Door UL Listed for 3 Hour Fide Door
Manufacturer Warranty	Limited lifetime mechanical warranty

Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
