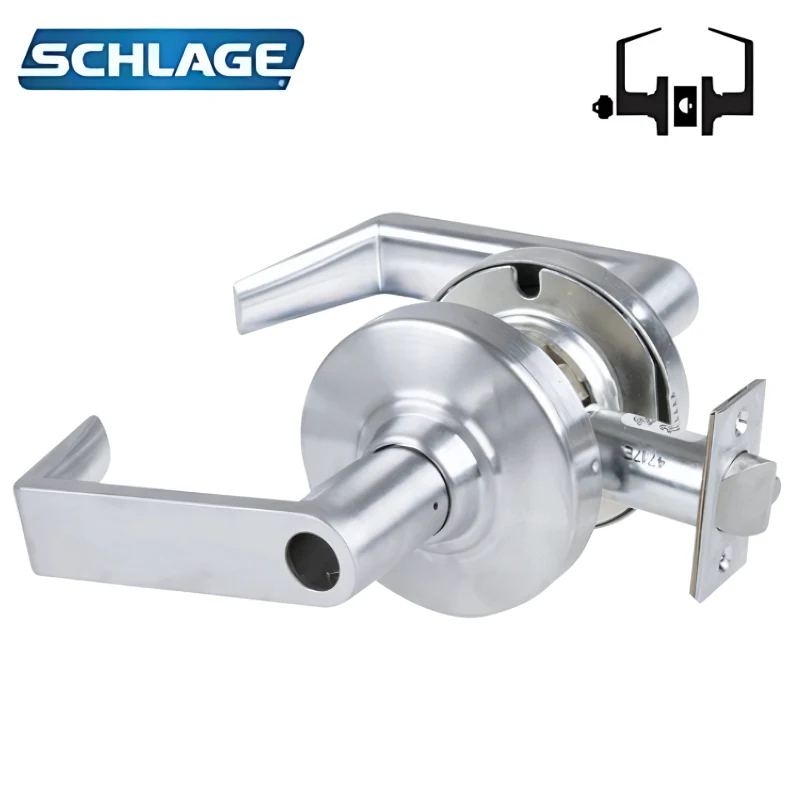

Schlage - ND80LD - Less Cylinder - Storeroom Lock - Rhodes Lever - Non-Handed - Satin Chrome - Grade 1

The Schlage ND80LD is a Grade 1 storeroom lock designed for high-security commercial applications. This lock features a Rhodes lever design and comes in a Satin Chrome (626) finish. It is non-handed, allowing for flexible installation on both left and right-handed doors.

Features:

• Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
• Fire Rated for 3 Hours
• RHO - Rhodes Lever Style
• Support for 10 non-Schlage cores



Specifications

Lock Function	F86 - Storeroom - Outside Lever is Fixed; Entrance by Key Only; Inside Lever Always Unlocked
Handing	Non-Handed
Door Thickness	1-5/8" to 2-1/8" (41 to 54 mm)
Faceplate Size	1-1/8" x 2-1/4"
Cylinder	6-Pin Patented Everest 29
Keyway	Schlage C - KD
Backset	2 3/4" (70 mm) only
Bolt	1/2" throw via Oil Impregnated Stainless Steel
Latch	1"
Lever	RHO - Rhodes Lever Style
Material	Stainless Steel / Zinc
Rose	3-7/16"
Strike	1-1/4" x 4-7/8" x 1-3/16"
Finish	626 - Satin Chrome
Certifications	ANSI/BHMA A156.2-2003, Exceeds 800,000 ANSI Cycles, Meets FF-H-106C Series 161, MEA Certification, Grade 1, Fire Rated for 3 Hours
Manufacturer Warranty	10 years mechanical
