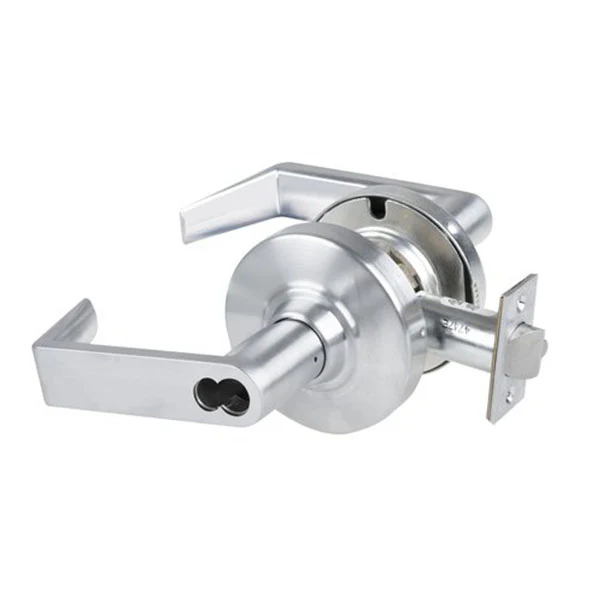

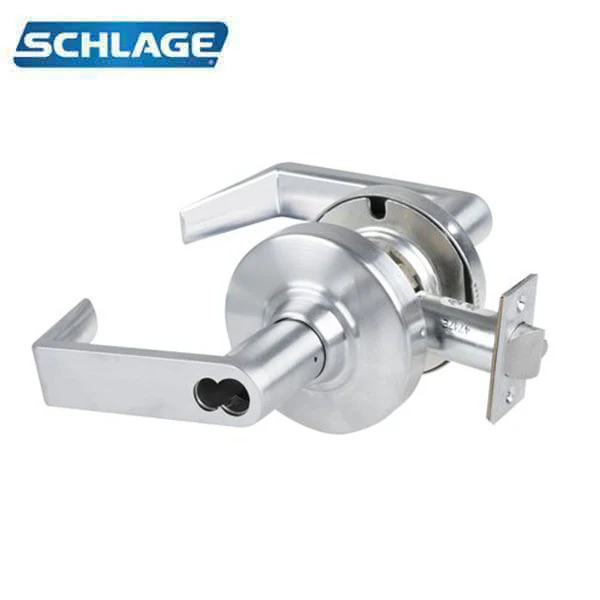

Schlage - ND80BDEU - Electrical Cylindrical Lock - Fail Secure - Less SFIC - Rhodes Lever - Satin Chrome - Fire Rated - Grade 1
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
Features
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- Fail Secure Function
- Prepped for SFIC cylinder formats
- Fire Rated for 3 Hours
- TLR - Tubular Lever Style
- Support for 10 non-Schlage cores
- Cylinder NOT INCLUDED
Specifications
| Chassis | |
| Material | Stainless Steel / Zinc |
| Door Thickness | 1 5⁄8" to 2 1⁄8" |
| Trim | |
| Lock Function | Electrical Fail Secure |
| Handing | Non-Handed |
| Lever | Rhodes Lever |
| Finish | 626 - Satin Chrome |
| Latches | |
| Backset | 2 3⁄4" |
| Faceplate Size | 1 1⁄8" x 2 1⁄4" |
| Bolt | 1⁄2" throw |
| Strike | ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" |
| Keying | |
| Formats | 3 Schlage |
| Cylinder | SFIC Prep Less Core Cylinder Not included |
| Access security | 6-Pin |
| Fire Rated | 3 Hour Positive pressure |
| Electrical | 12 THRU 24VDC |
| Certifications |
ANSI/BHMA, ICC, UL/cUL |
| Manufacturer Warranty | 1 year wired electrified |
Dimensions RHODES
