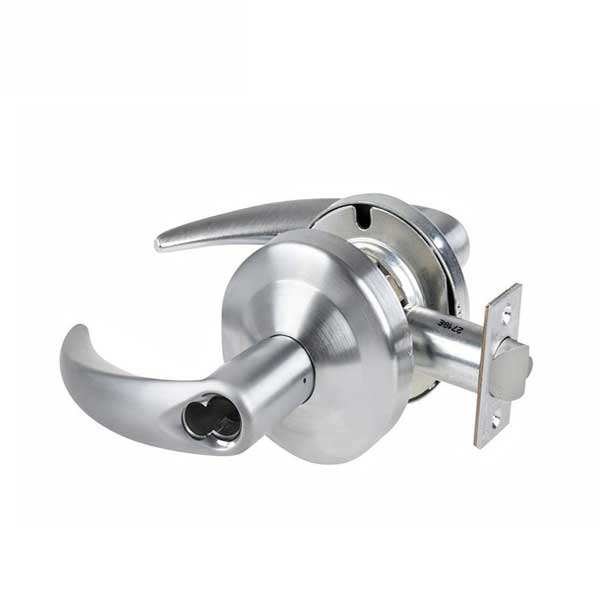

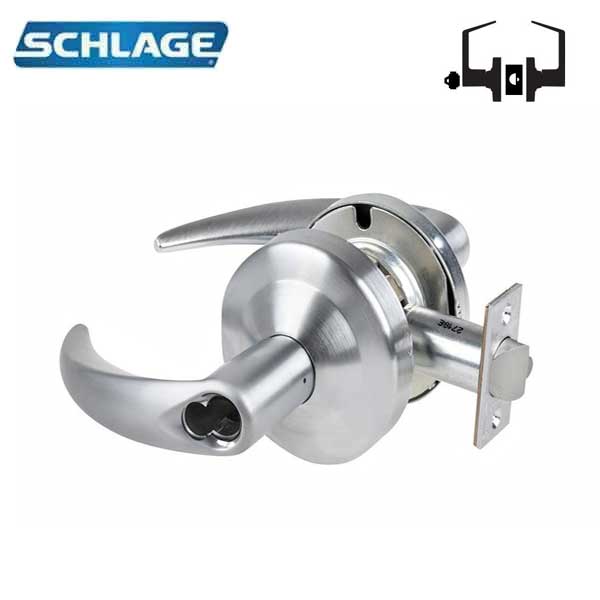

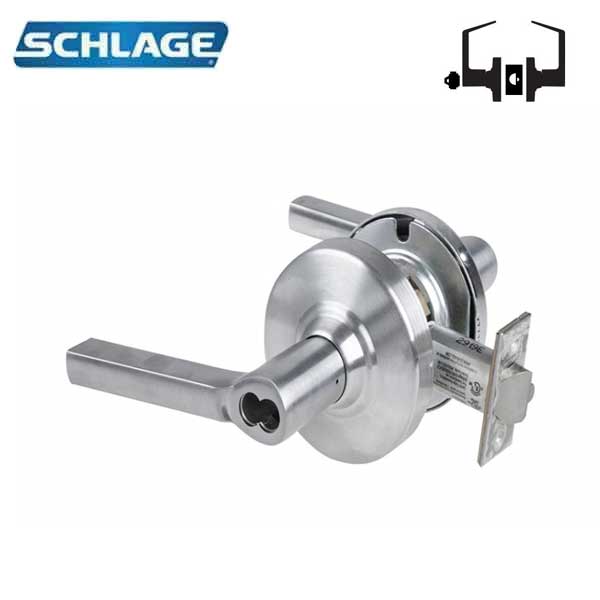

Schlage - ND80BD - Commercial Lever Set - Storeroom - Less SFIC - Satin Chrome - Optional Levers - Fire Rated - Grade 1
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
Features
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- Prepped for SFIC cylinder formats
- Fire Rated for 3 Hours
- TLR - Tubular Lever Style
- Support for 10 non-Schlage cores
- Cylinder NOT INCLUDED
- Outside lever is fixed.
- Entrance by key only.
- Inside lever always free for immediate egress.
Specifications
| Chassis | |
| Material | Stainless Steel / Zinc |
| Door Thickness | 1 5⁄8" to 2 1⁄8" |
| Trim | |
| Lock Function | Storeroom lock - Outside lever is fixed |
| Handing | Non-Handed |
| Lever | Multiple Lever Options |
| Finish | 626 - Satin Chrome |
| Latches | |
| Backset | 2 3⁄4" |
| Faceplate Size | 1 1⁄8" x 2 1⁄4" |
| Bolt | 1⁄2" throw |
| Strike | ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" |
| Keying | |
| Formats | 3 Schlage |
| Cylinder | SFIC Prep Less Core Cylinder Not included |
| Access security | 6-Pin |
| Fire Rated | 3 Hour Positive pressure |
| Certifications |
ANSI/BHMA, ICC, UL/cUL |
| Manufacturer Warranty | 10 years mechanical, 1 year wired electrified |
Dimensions ATHENS
Dimensions RHODES
Dimensions LATITUDE
Downloads
