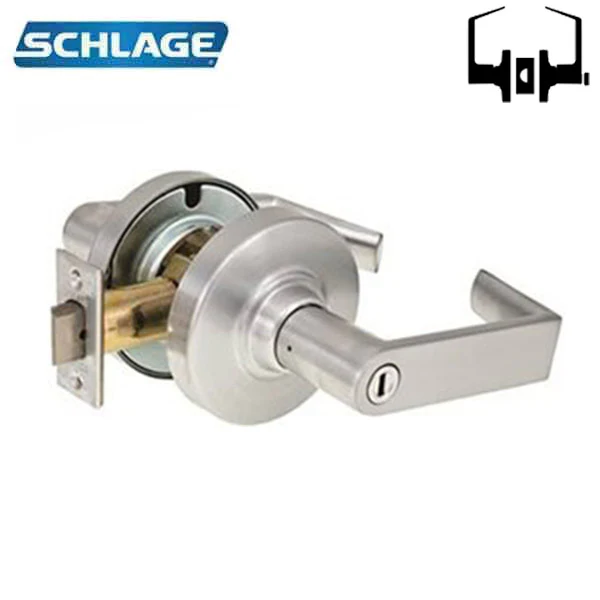

Schlage - ND40S - Commercial Lever Set - Rhodes Lever - Privacy - Satin Chrome - Fire Rated - Grade 1
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
Features
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- Fire Rated for 3 Hours
- TLR - Tubular Lever Style
- Privacy Function
- Push-button locking.
- Can be opened from outside with small screwdriver. Turning inside lever or closing door releases button. Inside lever is always free for immediate egress.
Specifications
| Chassis | |
| Material | Stainless Steel / Zinc |
| Door Thickness | 1 5⁄8" to 2 1⁄8" |
| Trim | |
| Lock Function | Privacy - Push-button locking |
| Handing | Reversible |
| Lever | Rhodes |
| Finish | 626 - Satin Chrome |
| Latches | |
| Backset | 2 3⁄4" |
| Faceplate Size | 1 1⁄8" x 2 1⁄4" |
| Bolt | 1⁄2" throw |
| Strike | ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" |
| Fire Rated | 3 Hour Positive pressure |
| Certifications |
ANSI/BHMA, ICC, UL/cUL |
| Manufacturer Warranty | 10 years mechanical, 1 year wired electrified |
Dimensions RHODES
