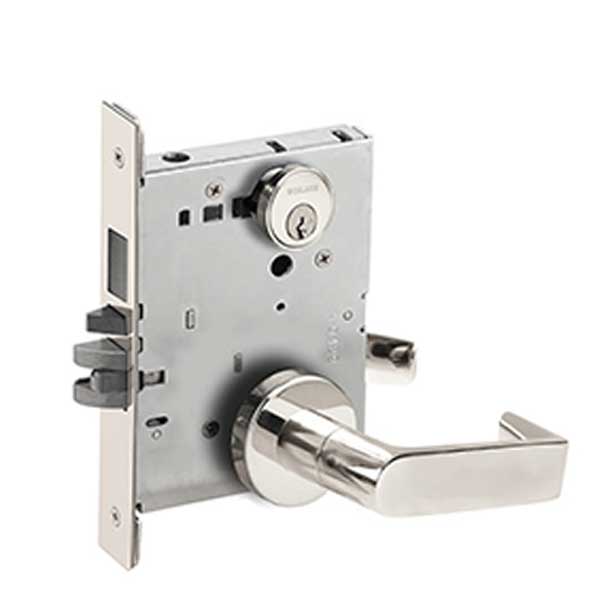

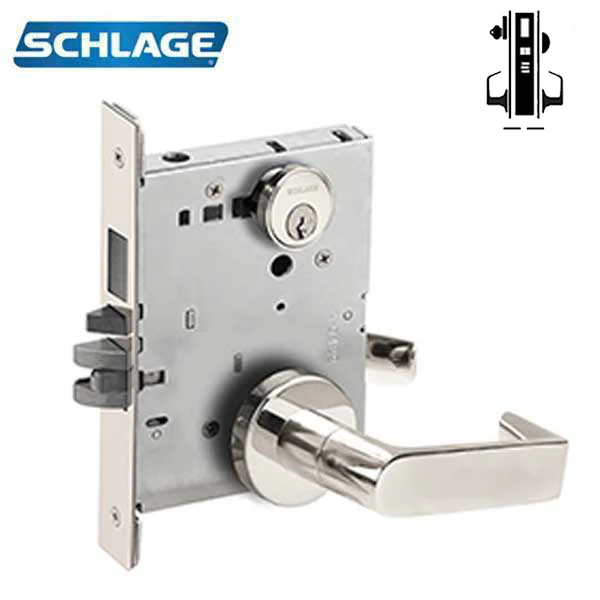

Schlage - L9485P - L Series Mortise Lockset w/ Deadbolt - 26D - Satin Chrome - Faculty Restroom - Grade 1
The Schlage L Series has long been the benchmark for mortise locks. Grade 1 certified these locks go beyond strength and security ā it offers tremendous flexibility to allow it to meet the needs of almost every application.
More Information Below:
| Function | 9485-Faculty Restroom Lock |
| Lever/Knob Design | 06 Lever |
| Rose/Escutcheon Design | A Rose |
| Cylinder Type | Mortise Cylinder |
| Num Pins | 6 |
| Std. Keyway | S123 |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Cylinder Length | 1-1/2 In. |
| Cam Type | Schlage L |
| Cam Number | L583-255 |
| Handing | LH |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Combination Latch and Bolt |
| Std. Latch Backset Dim | 2-3/4 In. |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch, 1" Deadbolt |
| Std. Strike Number | 10-072 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | Plastic |
| Screws | Combination |
| Product Type | Mortise Lock |
Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
