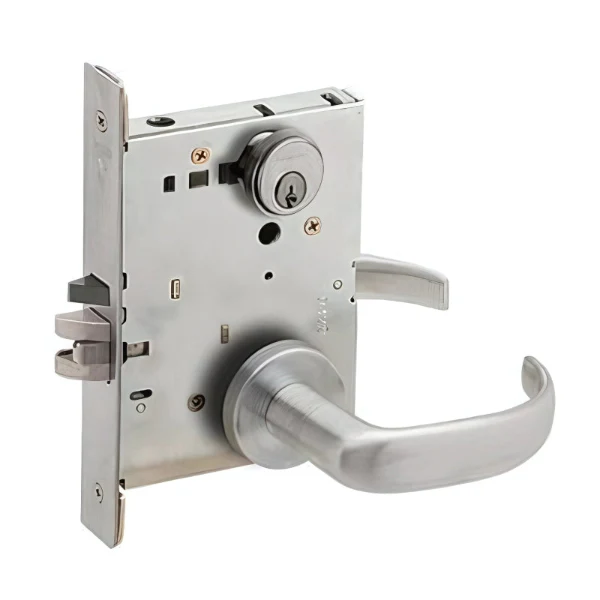

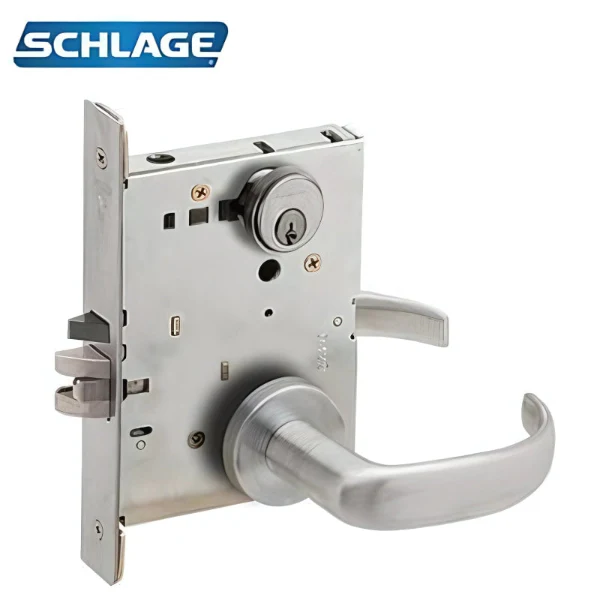

Schlage - L9080P - Storeroom Mortise Lock - Conventional Cylinder - S123 Keyway - 17 Lever - A Rose - 626/US26D Satin Chrome Finish - Field Reversible - Grade 1



The Schlage L9080P-17A-626 commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9080P series meets ANSI/BHMA A156.13 series 1000 Grade 1.

Storeroom lock - Latchbolt retracted by key outside or by lever inside. Outside lever is always inoperative. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.



Feature	Specification
Finish	Satin Chrome 626/US26D
Design	17 Lever and A Rose
Function	Storeroom
Strike	ANSI Strike
Fire Rated	3 Hours
BAA Qualified	Yes
Cylinder Type	6-Pin Full-Face Mortise Cylinder with Schlage Logo
Keyblank Grouping	SCHL-C-6-1
Rose/Escutcheon Trim	A-Wrought Rose
Rose/Escutcheon Width	2-1/8"
Rose/Escutcheon Length	2-1/8"
Product Type	Mortise Lock
Grade	ANSI/BHMA Grade 1
Keyway	Schlage C
Backset	2-3/4"
Handing	Field-Reversible
Door Thickness	1-3/4"
ANSI Function	F07
ADA Compliant	Yes
Strike Plate	1/4" x 4-7/8" Square Corner, 1-3/16" Lip
Case Dimension	4-7/16" x 6-1/16" x 1"
Front Size	1-1/4" x 8" x 7/32"
Strike Lip	1-3/16"
Alternate Part Number	118974
Latch Bolt Type	Deadlatch
