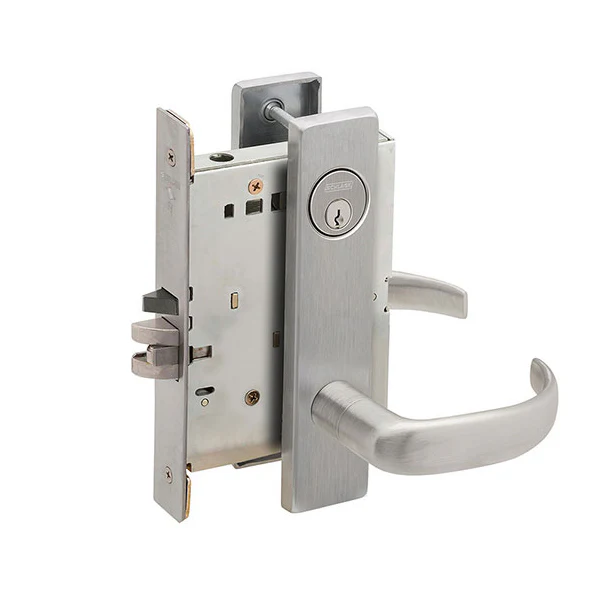

Schlage - L9080P - Mortise Lock with 17 Lever - 6 C Keyway - 6 Pin Cylinder - Storeroom - Satin Chrome - Grade 1
The Schlage L Series has long been the benchmark for mortise locks.
Beyond strength and security ā it offers tremendous flexibility to allow it to meet the needs of almost every application.
Features
- Exceeds ANSI/BHMA Grade 1 Security and Operational standards
- UL listed for 3-hour fire door
- Meet ADA requirements
- 478 ANSI Strike
Specifications
| Lock Function | 9080-Storeroom - Latchbolt retracted by key outside or by knob/lever inside. |
| Door Thickness | 1-3/4" |
| Cylinder | 30-001 cylinder keyed different, with 2 keys |
| Backset | 2-3/4" |
| Latch |
3/4" (19 mm) throw stainless steel latch with anti-friction tongue |
| Material | Stainless Steel / Zinc |
| Case size | 4-7ā16" x 6-1ā16" x 1" |
| Strike | 1-1/8" x 3-1/2" (29 mm x 89 mm) with dust box |
| Armored Row | 1-1/4" x 8" x 7/32" standard |
| Fire Rating | āAā Label 3 Hour Fire Doors, UL10C Positive Pressure Rated |
| Certifications |
ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1 |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
