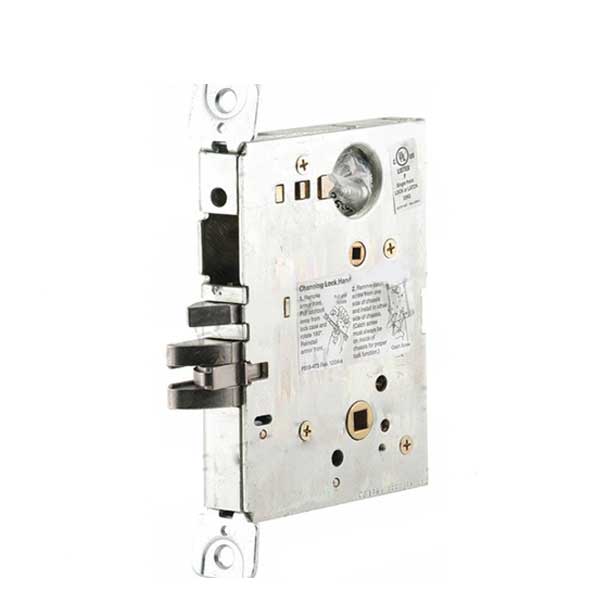

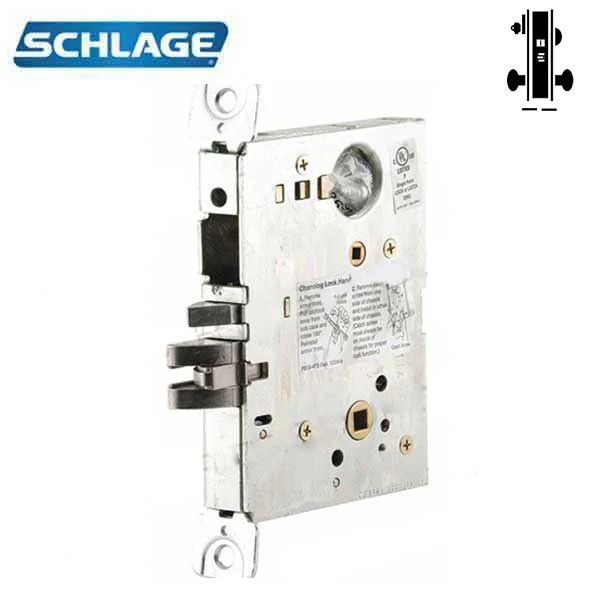

Schlage - L9056LB - L Series Mortise Lock Body - Auto Unlocking - RH - Entrance / Office - Grade 1
The Schlage L Series has long been the benchmark for mortise locks.
Beyond strength and security ā it offers tremendous flexibility to allow it to meet the needs of almost every application.
Features
- Auto Unlocking
- Grade 1
- UL Listed & Fire Rated up to 3 Hours
- Limited Lifetime Mechanical Warranty
| Specifications | |
|---|---|
| Lock Function | 9056-Entrance Office w/ Auto Unlocking - Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by rotating inside thumbturn. Outside knob/lever unlocked by key outside, thumbturn or closing door. Rotating inside knob/lever simultaneously retracts latchbolt and unlocks outside knob/lever. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress |
| Handing | Right Hand |
| Door Thickness | 1-3/4" (44 mm) |
| Cylinder | No Cylinder - Lock Body Only |
| Backset | 2-3/4" (70 mm) only |
| Bolt | 1" (25 mm) throw stainless steel deadbolt |
| Latch |
3/4" (19 mm) throw stainless steel latch with anti-friction tongue |
| Material | Stainless Steel / Zinc |
| Case size | 4-7/16" x 3-5/8" x 1" (113 mm x 92 mm x 25 mm) |
| Spacing | Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11/16" (68 mm) |
| Strike | 1-1/8" x 3-1/2" (29 mm x 89 mm) with dust box |
| Certifications |
ANSI/BHMI Certified A156.13-2012 Commercial Grade 1 Lock Body Mortises Inside the Edge of the Door UL Listed for 3 Hour Fire Door |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
| Downloads |
|---|
| Catalog |
| Installation Instructions |
