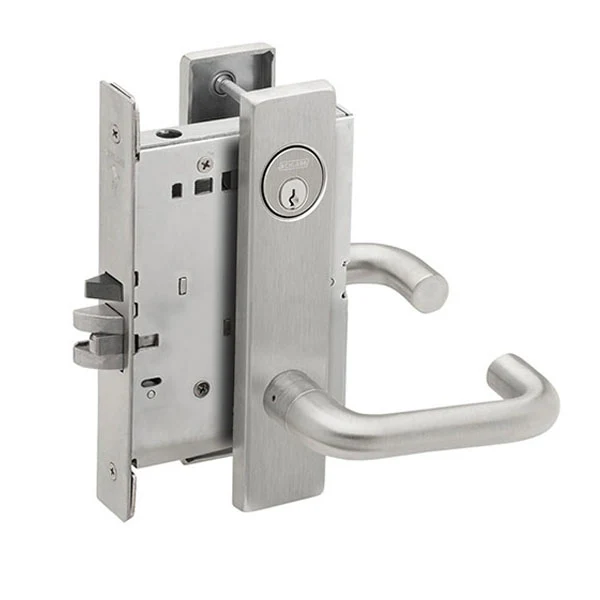

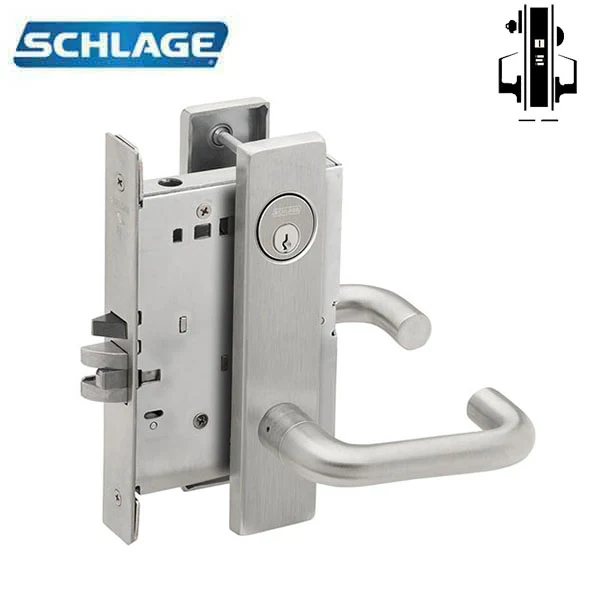

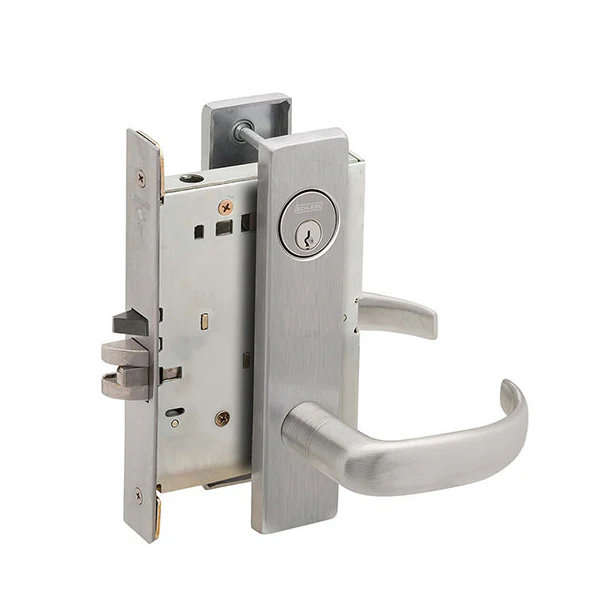

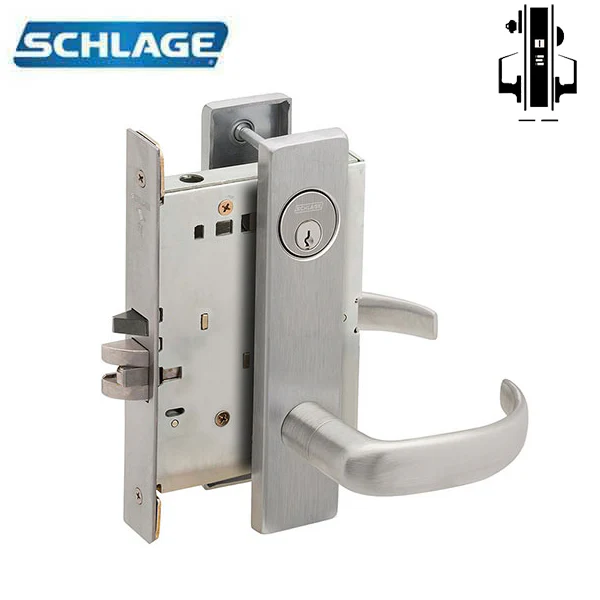

Schlage - L9050P - L Series Mortise Lock - Entrance / Office - Keyed Cylinder - Optional Lever - Fired Rated - Satin Chrome - Grade 1
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security ā it offers tremendous flexibility to allow it to meet the needs of most every application
More Information Below
| Lock Function | 04 - Office Entry - Inside always free, Outside locked by inside thumbturn and keyed - No Deadbolt |
| Handing | Non-Handed |
| Door Thickness | 1 3/4" (44 mm) |
| Cylinder | 30-001 cylinder keyed different, with 2 keys |
| Backset | 2 3/4" (70 mm) only |
| Latch |
3/4" (19 mm) throw stainless steel latch with anti-friction tongue |
| Lever | 17 Lever 4.625" x 2.875" 03 Lever 4.75" x 2.813" |
| Material | Stainless Steel / Zinc |
| Case size | 4-7ā16" x 6-1ā16" x 1" |
| Strike | ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard |
| Fire Rated | 3 Hour Fire Door |
| Certifications |
ANSI/BHMI Certified A156.13-2012 Commercial Grade 1 Lock Body Mortises Inside the Edge of the Door UL/cUL Listed UL 10C |
| Manufacturer Warranty | 3 year limited mechanical |
Downloads
Select Lever
From $625.76
Schlage - L9050P - L Series Mortise Lock - Entrance / Office - Keyed Cylinder - Optional Lever - Fired Rated - Satin Chrome - Grade 1ā
$625.76
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security ā it offers tremendous flexibility to allow it to meet the needs of most every application
More Information Below
| Lock Function | 04 - Office Entry - Inside always free, Outside locked by inside thumbturn and keyed - No Deadbolt |
| Handing | Non-Handed |
| Door Thickness | 1 3/4" (44 mm) |
| Cylinder | 30-001 cylinder keyed different, with 2 keys |
| Backset | 2 3/4" (70 mm) only |
| Latch |
3/4" (19 mm) throw stainless steel latch with anti-friction tongue |
| Lever | 17 Lever 4.625" x 2.875" 03 Lever 4.75" x 2.813" |
| Material | Stainless Steel / Zinc |
| Case size | 4-7ā16" x 6-1ā16" x 1" |
| Strike | ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard |
| Fire Rated | 3 Hour Fire Door |
| Certifications |
ANSI/BHMI Certified A156.13-2012 Commercial Grade 1 Lock Body Mortises Inside the Edge of the Door UL/cUL Listed UL 10C |
| Manufacturer Warranty | 3 year limited mechanical |
