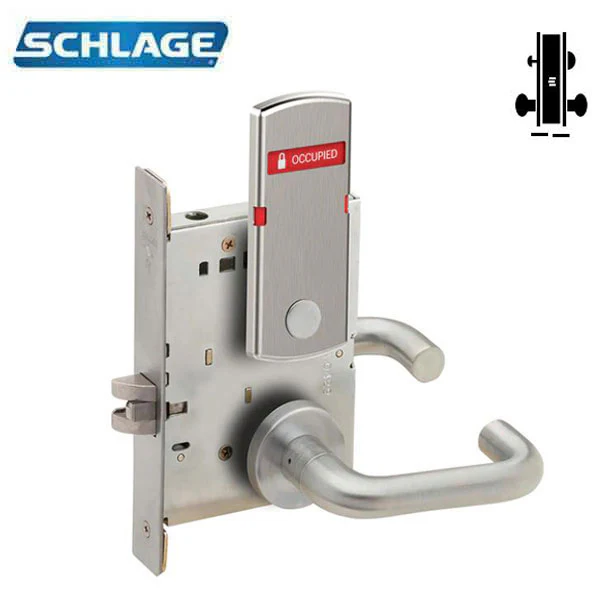

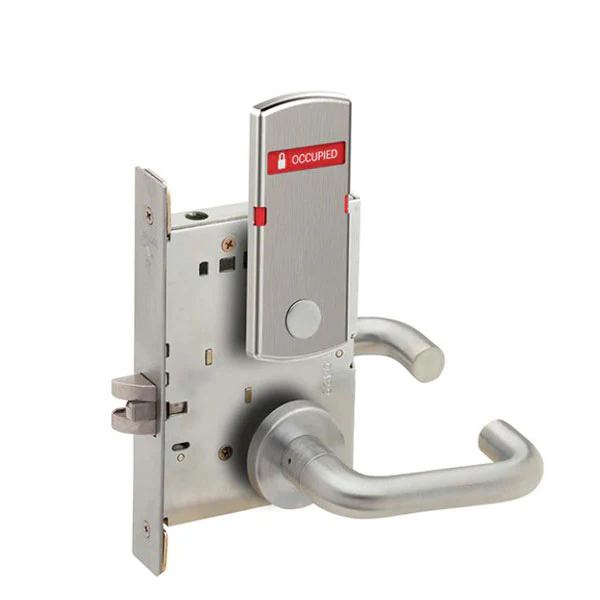

Schlage - L9040 - L Series Mortise Lock - Non-Keyed - Exit Indicator - Privacy - Fire Rated - Satin Chrome - Grade 1
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security ā it offers tremendous flexibility to allow it to meet the needs of almost every application. The 180 degree visibility indicator offers unparalleled visibility and flexibility. The unique features of the indicator make it ideally suited for classroom security applications as well as traditional occupied/vacant applications.
Features
- 2" x 1ā2" display for easy viewing at a distance
- 180Ā° window for visibility at any angle
- High-mount placement for quick assessment
- High contrast colors for ease of reading
- Available for over 30 functions, inside or outside of door
- Retrofit kit allows indicator upgrades to already installed L Series mortise locks
- Indicator text available in English or French
Specifications
| Lock Function | 9040-Privacy - Latchbolt retracted by lever/knob from either side unless outside lever is locked by inside thumbturn. |
| Exit Indicator | Vacant/Occupied |
| Handing | Non-Hand |
| Door Thickness | 1-3/4" (44 mm) |
| Cylinder | Non-Keyed |
| Backset | 2-3/4" (70 mm) only |
| Bolt | 1" (25 mm) throw stainless steel deadbolt |
| Latch |
3/4" (19 mm) throw stainless steel latch with anti-friction tongue |
| Strike | ANSI curved lip strike 1 1ā4" x 4 7ā8" (32 mm x 124 mm) x 1 3ā16" (30 mm) lip to center with dust box |
| Lever | 03 Lever |
| Rose | A Rose - 2 1ā8" (54 mm) diameter |
| Material | Stainless Steel / Zinc |
| Case size | 4 7ā16" x 6 1ā16" x 1" (113 mm x 154 mm x 25 mm) |
| Spacing | Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11/16" (68 mm) |
| Strike | 1-1/8" x 3-1/2" (29 mm x 89 mm) with dust box |
| Fire Rated | 3 Hour Fire Door |
| Certifications |
ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security UL/cUL Listed, UL 10C |
| Manufacturer Warranty | 3 year limited mechanical |
