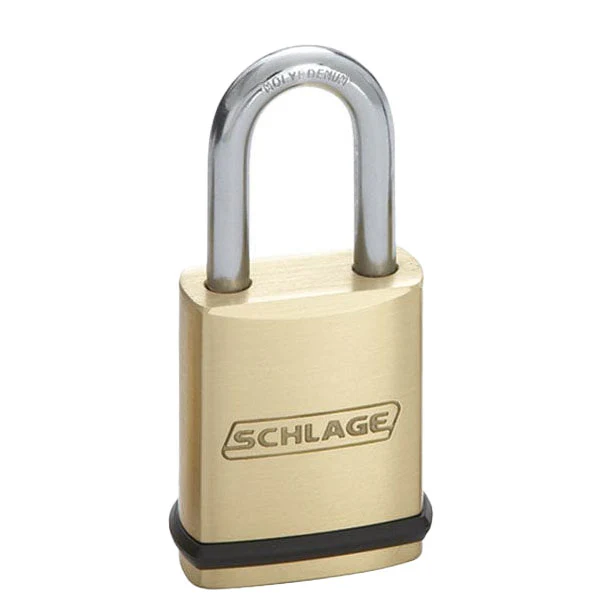

Schlage - KS23D2200 - Padlock - Less Cylinder - 5/16" Width - 1-1/2 Inch Shackle

The Schlage Brass padlocks meet or exceed ASTM standards for standard steel shackle, cutting, and corrosion resistance. The solid brass body resists corrosion for all-weather performance and the molybdenum hardened steel shackle offers greater cut resistance. The double deadbolt locking mechanism provides extra security. Patented interchangeable shackle design allows for easy disassembly. Schlage portable security products provide single-key convenience throughout any facility or security area. These locks can be master keyed into any new or existing Schlage key system, allowing you to integrate padlocks with door-to-door hardware and eliminating the need for separate keys.

• Meets or exceeds ASTM standards for standard steel shackle, shackle cutting, and corrosion-resistance
• Solid brass body resists corrosion for all-weather performance
• Molybdenum-hardened steel shackle offers greater cut resistance
• The double deadbolt locking mechanism provides extra security
• Patented interchangeable shackle design allows for easy disassembly

Specifications:

Brand	Schlage
Certification	Meets or exceeds ASTM standards for standard steel, shackle cutting and corrosion resistance
Shackle Diameter	5/16"
Shackle Clearance	1-1/2"
Manufacturer Parent	Allegion
Lock Body	brass
Shackle	Hardened alloy steel, double deadbolt locking mechanism
Cylinder	Not Included
Keys	Two nickel silver cut keys per lock, branded schlage
Shackle Length	1-1/2"
Product Type	Auxiliary Lock
Function	Padlock
Cylinder Type	Conventional Padlock
Sub-Series	KS23D2200
Warranty	3 Year limited mechanical warranty
Resistance Properties	Pick Resistance
Body Height	2-3/16"
Body Width	1-25/32"



Downloads:

• Spec Sheet
• Installation Instructions
