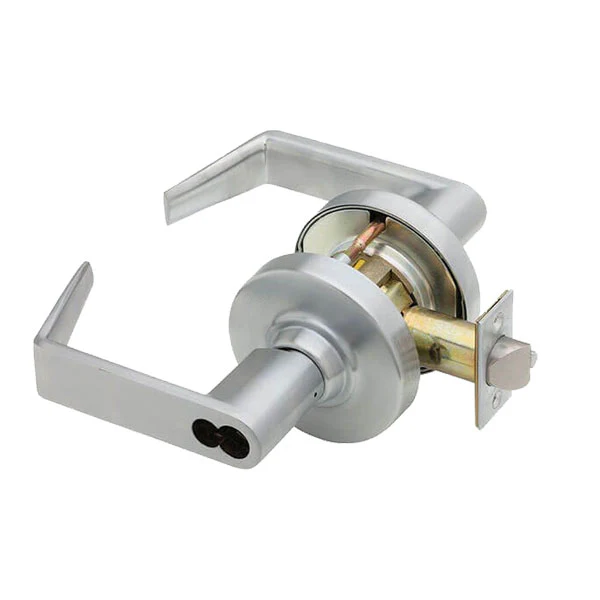

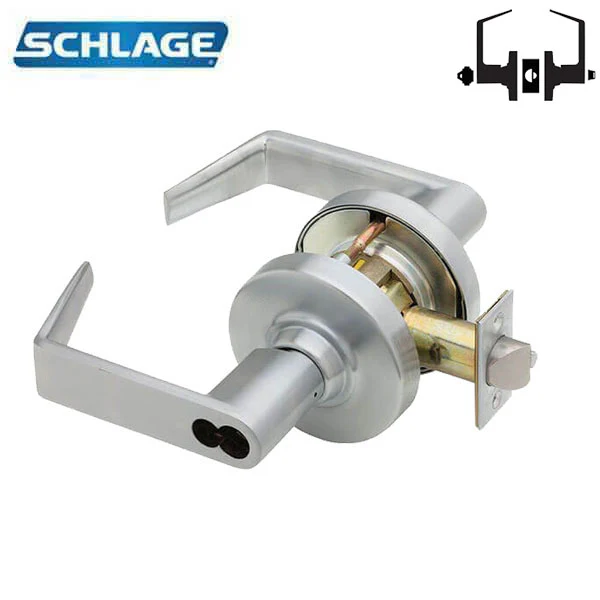

Schlage - ALX53J - Cylindrical Lever Set - Entrance - Less FSIC - Satin Chrome - Rhodes Lever - Vandlgard Feature - Fire Rated - Grade 2
The AL Series has always offered a combination of strength and durability, Though these qualities remain, the lock has changed, ALX Series features now deliver flexibility and value beyond strength and security. X Factor qualities, born from modular design.
Features
- Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability
- Prepped for FSIC cylinder formats
- Fire Rated - UL/cUL listed up to 3 Hours ā UL symbol on the latch front
- Key cylinder outside; push/turn button inside; deadlatch
- Inside lever always free for immediate egress
- Key outside retracts latch only
- Field selectable VandlgardĀ® feature
- 23-030 Full Size Interchangeable Core (sold separately)
Specifications
| Chassis | |
| Material | Steel, zinc dichromated for corrosion resistance |
| Door Thickness | 1-3/8ā³ to 1-3/4ā³ |
| Trim | |
| Lock Function | Entrance Lock (F109) |
| Handing | Non-Handed |
| Lever | Rhodes Lever |
| Rose | Wrought brass, bronze or zinc plated to match finish specification |
| Finish | 626 - Satin Chrome |
| Latches | |
| Backset | 2 3ā4" |
| Faceplate Size | 1 1ā8" x 2 1ā4" square corners |
| Latch | 1/2ā throw, deadlocking ā 1-1/8" x 2-1/4" face |
| Strike | 4-7/8ā x 1-1/4ā ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Keying | |
| Cylinder | FSIC Prep Less Core Cylinder Not included |
| Keying Type | Everest 29 S123 patented open keyway, keyed different (KD) |
| Fire Rated | UL/cUL listed up to 3 Hours ā UL symbol on the latch front |
| Certifications |
Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability |
| Manufacturer Warranty | 10 years limited |
Dimensions SATURN
Convert ALX53J Lock to or from Vandlgard:
