Schlage - ALX53-P - Commercial Cylindrical Lock - Entrance - Saturn Lever Non-Handed - Grade 2 - Satin Chrome
Schlage ALX53P SAT Grade-2 Cylindrical Lever Lock, Entrance Function, Saturn Lever

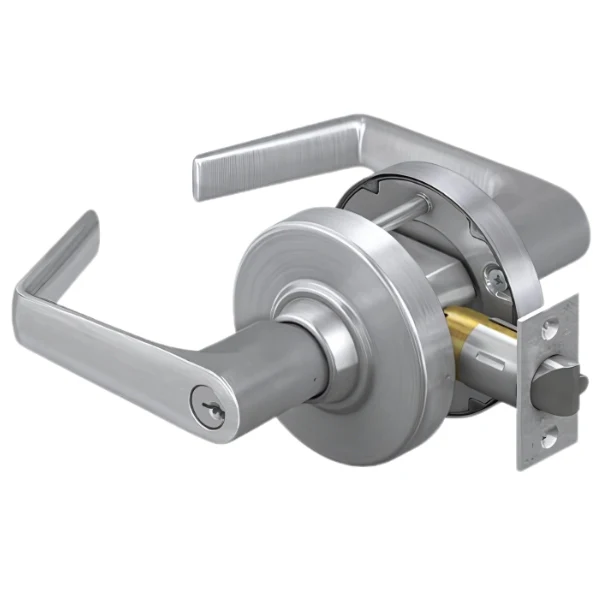

The Schlage ALX53P-SAT-626 is a Grade 2 cylindrical entrance lock featuring a Saturn lever design, suitable for commercial applications requiring reliable security and durability.
Features:
- ANSI/BHMA Certified A156.2, Grade 2
- ANSI Function F109 ā Entrance
- ADA-compliant
- 3-hour fire-rated
- Key Cylinder outside
- Push/turn button inside; deadlatch
Ā
Specification:
| Brand |
Schlage |
|---|---|
| Finishes |
626 Satin Chrome |
| Lock Function |
Entry (Entrance) |
| Cylinder & Keys |
5-pin or 6-pin conventional, keyed differently, with 2 keys |
| Keyway |
Schlage C Keyway, Schlage S123 Keyway |
| Lever Design |
SAT (Saturn) |
| Backset |
2-3/4" Standard |
| Latch |
1/2" throw, deadlocking ā 1-1/8" x 2-1/4" face standard. 2-3/8" latch is 1" x 2-1/4" |
| Strike |
Standard: 4-7/8ā x 1-1/4ā ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation. Optional 2-3/4" x 1-1/8" T-Strike |
| Usage |
Medium Duty |
| ANSI/BHMA Standard |
Certified A156.2-2011 Series 4000, Grade 2; exceeds the standard for lever and spindle strength and durability |
| ADA Compliance |
Meets ADA requirements ā A117.1 Accessibility Code |
| Fire Rating |
UL/cUL listed up to 3 Hours ā UL symbol on the latch front |
| CA Fire Code |
All levers with a return to door of 1 ā2" (64 mm) or less comply |
| FL Building Code |
ASTM E330, E1886, E1996, and Miami Dade (TAS 201, 202, 203) requirements for hurricanes |
| Handing |
Non-Handed |
| Door Thickness |
1-3/8" to 1-3/4" |
| Warranty |
10-Year Limited Manufacturer's Warranty |
Ā
Original: $209.56
-65%$209.56
$73.35Product Information
