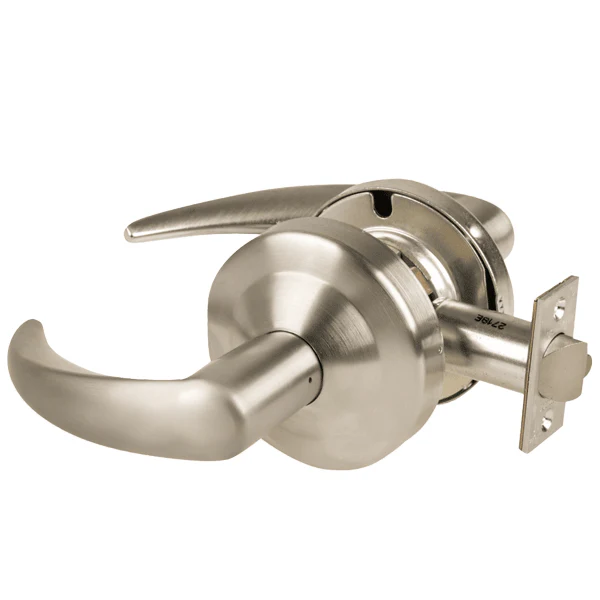

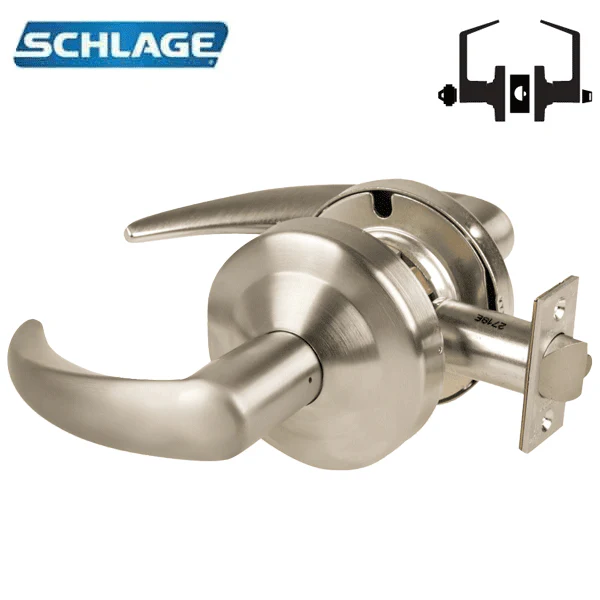

Schlage - ALX10 - Cylindrical Lever Set - Passage - Rhodes Lever - Satin Nickel - Vandlgard Feature - Fire Rated - Grade 2

The AL Series has always offered a combination of strength and durability, Though these qualities remain, the lock has changed, and ALX Series features now deliver flexibility and value beyond strength and security. X Factor qualities are born from modular design.

Features

• Certified A156.2-2011 Series 4000, Grade 2; exceeds the standard for lever and spindle strength and durability
• Non-Keyed

• Fire Rated - UL/cUL listed up to 3 Hours – UL symbol on the latch front
• Passage Function
• No key; plain lever on both sides; spring latch
• Both levers always unlocked
• Field selectable Vandlgard® feature

• Rhodes Lever



Specifications

Chassis
Material	Steel, zinc dichromate for corrosion resistance
Door Thickness	1-3/8″ to 1-3/4″
Trim
Lock Function	Passage Function (F75)
Handing	Non-Handed
Lever	Rhodes Lever - 4-9/16" Width x 3-5/16" Projection
Rose	Wrought brass, bronze, or zinc plated to match the finish specification
Finish	619 - Satin Nickel
Latches
Backset	2 3⁄4"
Faceplate Size	1 1⁄8" x 2 1⁄4" square corners
Latch	1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Strike	ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16"
Fire Rated	UL/cUL listed up to 3 Hours – UL symbol on the latch front
Certifications	Certified A156.2-2011 Series 4000, Grade 2; exceeds the standards for lever and spindle strength and durability
Manufacturer Warranty	10 years limited

Dimensions RHODES lever



Convert ALX53L Lock to or from Vandlgard:
