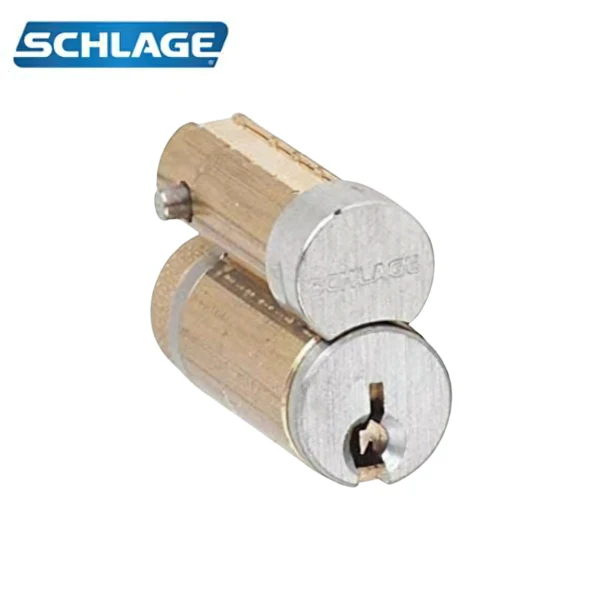

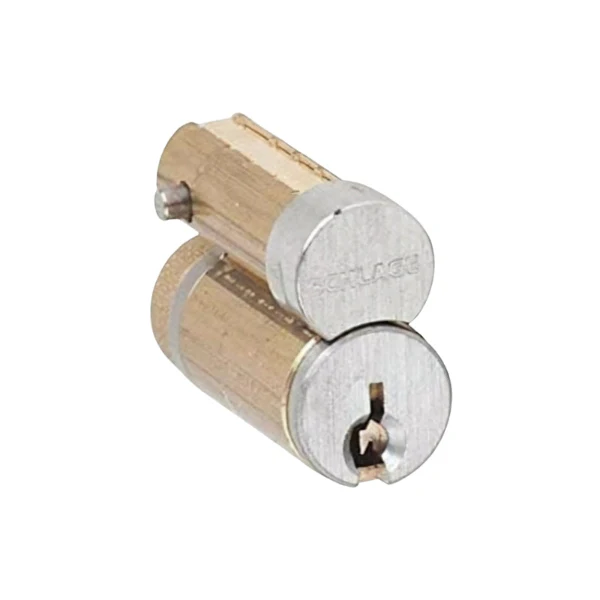

Schlage - 23-030 - Full Size Interchangeable Core 35.55 - C Keyway - 2 Keys - 6-Pin - Non Handed - Satin Chrome 626/US26D

The Schlage 23-030-C-626 is a Full-Size Interchangeable Core (FSIC) cylinder with a standard C keyway and a satin chrome (626/US26D) finish. This core allows for efficient rekeying in commercial settings without the need to disassemble the lock mechanism. IC cylinders are designed to be replaced without disassembling the lock making them ideal for larger campuses or higher security needs. Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed or a lock disassembly is labor-intensive such as with exit devices and certain types of all-glass doors, etc.

Features:

• Fits Schlage locks and cylinder housing prepped for FSIC (full-size interchangeable core) or LFIC (large format interchangeable core)
• Fits Kaba/Simplex push-button locks with "S" prep
• Supplied 1-bitted, ready to be keyed
• Equivalent to ILCO SC4 designation
• No control key is included (must be ordered separately)



Specifications:

Cylinder Type	FSIC Core
Handing	Non-handed
Installation	Commercial
Keying	1-bitted
Keys	Cut
Number of Keys	2
Pins	6
Keyway	C
Finish	626/US26D Satin Chrome

Downloads:

• Spec Sheet
