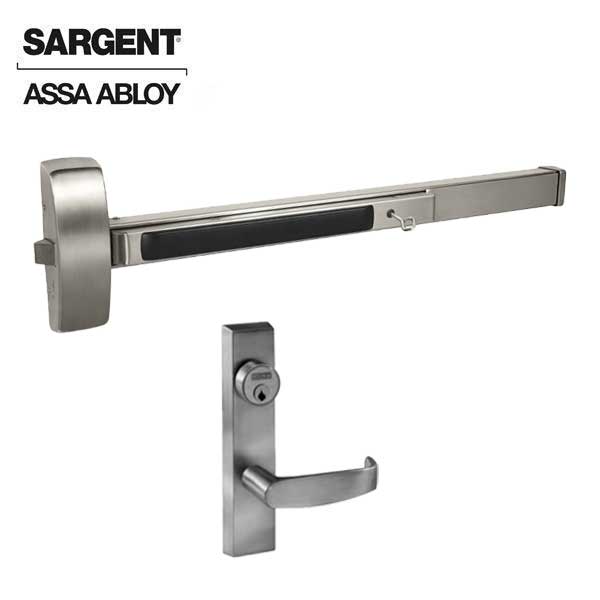

Sargent - 8813 - Rim Exit Device with Trim Lever - Satin Stainless Steel - Remote Latch Retraction - 36" - Grade 1
This is a 8813 Rim Exit Device with 700 ET Trim Lever - Key Outside Unlocks / Locks Trim - Remote Latch Retraction
Designed for standard width stile applications on wood and metal doors, the 8800 Series features a rim bolt that combines quiet operation with solid security. Ideal for schools, offices, and hospitalsāfor both single door and double door applications with mullions.
Features
- Designed for standard width stile applications on wood and metal doors
- Single point rim latching device
- Modular construction, maintenance-free design
- Few moving parts
- Remote Latch Retraction
- ANSI/BHMA Grade 1
- UL Fire and Panic listed
- Single or double door applications with mullion
- Made from 61% post-consumer recycled content
- 5 year manufacturers warranty
Specifications
| Device Function | 13 - Key Outside Unlocks / Locks Trim |
| ANSI Function | 08 - Key Outside Unlocks / Locks Trim |
| Mechanical Function | 56 - Remote Latch Retraction |
| Trim | Rim Exit Device with Trim Lever |
| Trim description | 700 ET Trim |
| Lever Style | L Lever. 2-1/2" Projection |
| Trim Size | 8-1/16" H x 1-13/16" W |
| Pushbar Projection | 2-1/8" - 3" |
| Cylinder | Standard Sargent Cylinder #41 |
| Latch Bolt | Stainless Steel 3/4" Throw |
| Exit Device length | 33" to 36" (84cm to 91cm) No cutting required for 36" (91cm) door |
| Door Thickness |
1-3/4" to 2-1/4" |
| Stile | 4-1/2" (114mm) minimum stile width |
| Mounting | Supplied standard with wood and machine screws |
| Dogging | Hex key dogging standard on non fired rated devices |
| Strikes | 649 Strike supplied standard for panic & fire rated openings |
| Fire Rated | UL Fire rated for 3 Hours |
| Certifications | ANSI A156.3 ā 2008 Grade 1 |
Downloads:
