Sargent - 8804F - Rim Exit Device with Trim Lever - Satin Stainless Steel - Night Latch - RHR - SFIC - 36" - Grade 1

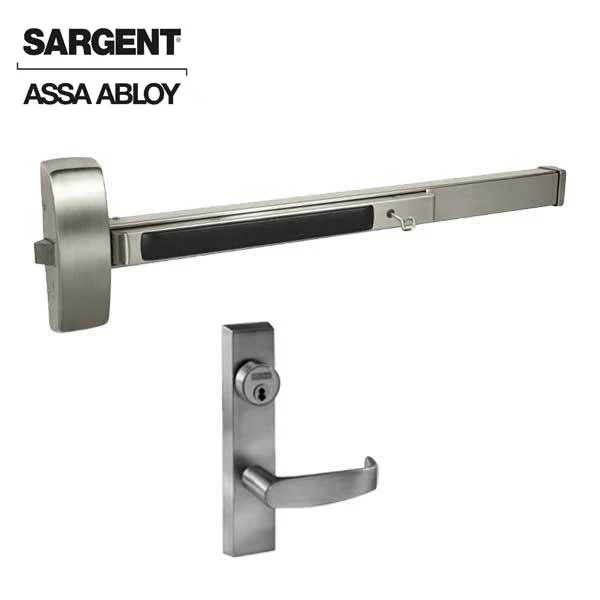

This is an 8804 Rim Exit Device with 700 ET Trim Lever - Night Latch - Accepts SFIC

Designed for standard-width stile applications on wood and metal doors, the 8800 Series features a rim bolt that combines quiet operation with solid security. Ideal for schools, offices, and hospitals—for both single-door and double-door applications with mullions.

Features

• Designed for standard-width stile applications on wood and metal doors
• Single-point rim latching device
• Modular construction, maintenance-free design
• Few moving parts
• ANSI/BHMA Grade 1
• Right Hand Reversible
• UL Fire and Panic listed
• Accepts SFIC (Small Format Interchangeable Cores) - Not Included
• Single or double-door applications with mullion
• Made from 61% post-consumer recycled content
• 5-year manufacturer's warranty



Specifications

Device Function	04 - Night Latch
ANSI Function	03 - Key Retracts Latch
Cylinder Option	70 - Lock to accept SFIC (6-pin or 7-pin, removable core) and provided with disposable plastic core; SFIC permanent core ordered separately
Trim	Rim Exit Device with Trim Lever
Trim Description	700 ET Trim
Lever Style	L Lever - 2-1/2" Projection
Trim Size	8-1/16" H x 1-13/16" W
Pushbar Projection	2-1/8" - 3"
Cylinder	SFIC (removable core) - Not Included
Handing	Right Hand Reversible
Latch Bolt	Stainless Steel 3/4" Throw
Exit Device length	33" to 36" (84cm to 91cm) No cutting required for 36" (91cm) door
Door Thickness	1-3/4" to 2-1/4"
Stile	4-1/2" (114mm) minimum stile width
Mounting	Supplied standard with wood and machine screws
Dogging	Hex key dogging standard on non-fired rated devices
Strikes	649 Strike supplied standard for panic & fire rated openings
Fire Rated	UL Fire rated for 3 Hours
Certifications	ANSI A156.3 – 2008 Grade 1



Downloads:

• Spec Sheet

• Installation Instructions

Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
