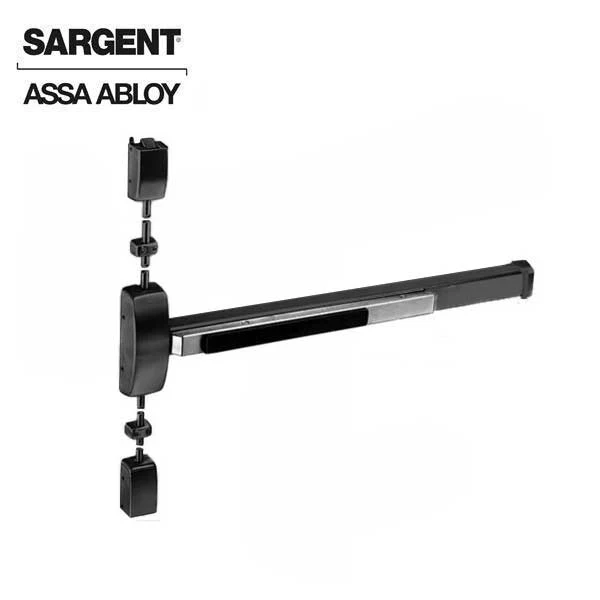

Sargent - 8710F - Surface Vertical Exit Rod - Passage (Exit Only) - 36" x 84" - Black Suede - Fired Rated - Grade 1

SRG-12-8710F-36Wx84h-EO-655x646-(L/R)HR-BSP

The 8700 Series offers two point latching with vertical rods mounted to the surface of the door face. It provides a top and bottom latch which can be adjusted via the center case. Meeting ANSI/BHMA Grade 1 standards, the 8700 Series can be used for single and double door applications and is available with hurricane and windstorm resistance certifications. Ideal for schools, offices, and hospitals—for both single door and double door applications with mullions.

Features

• Two point latching

• Standard bottom latch compatible with track latch thresholds
• Single or double door applications
• Few moving parts
• ANSI/BHMA Grade 1
• UL Fire and Panic listed
• Made from 61% post-consumer recycled content
• 5 year manufacturers warranty



Specifications

Device Function	10 - Passage, (Exit Only)
ANSI Function	01 - Passage (no cylinder)
Handing	Left Hand Reverse/Right Hand Reverse
Door Type	Wood or metal doors
Pushbar Projection	2-1/8" - 3"
Rail Size	33"-36" door widths.
Door Thickness	1-3/4" to 2-1/4"
Stile	4-1/2" (114mm) minimum stile width
Device center line from	41"(1041mm), 38"(965mm) for elementary schools
Door/Opening Height	Must be specified - 120" (3048mm) Max Door Opening - Non-fire rated doors 96" (2438mm) - Max Door Opening - Fire rated doors
Mounting	Supplied standard with wood and machine screws
Dogging	Hex dogging not available on fire rated
Strike	646 Top Strike 655 Fire Rated Bottom Strike
Center Case Dimensions	8-3/8" (213mm) x 2-5/8" (67mm)
Fire Rated	UL Fire rated for 3 Hours
Certifications	ANSI A156.3 – 2008 Grade 1
Manufacturer's Warranty	5 Years



Downloads

• Spec Sheet
• Installation Instructions
