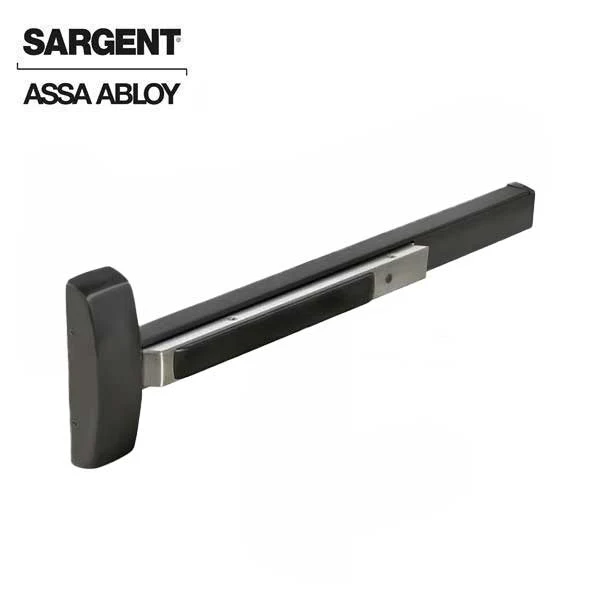

Sargent - 8610F - Concealed Vertical Exit Rod - Passage (Exit Only) - Electric Options - 36" x 84" - Black Suede - Grade 1

SRG-56-AD-8610F-36wx96h-EO-640x640-RHR-BSP

Designed for standard width single or double doors, the 8600 Series features vertical rods concealed within the door for added security and enhanced aesthetics. Equally suited for single door and double egress applications. Meeting ANSI/BHMA Grade 1 standards, the 8700 Series is available with hurricane and windstorm resistance certifications. Ideal for schools, offices, and hospitals.

Features

• Designed for standard width stile applications on aluminum doors

• Concealed rods for security and aesthetics

• Single or double door applications
• Optional Handing
• Optional Motorized Latch Retraction
• ANSI/BHMA Grade 1
• UL Fire and Panic listed
• Made from 61% post-consumer recycled content
• 5 year manufacturers warranty



Specifications

Device Function	10 - Passage, (Exit Only)
ANSI Function	01 - Passage (no cylinder)
Handing	Left Hand Reverse/Right Hand Reverse
Door Type	Aluminum Doors
Pushbar Projection	2-1/8" (54mm) - 3" (76mm)
Rail Size	33"-36" door widths.
Door Thickness	1-3/4" to 2-1/4"
Stile	4-1/2" (114mm) minimum stile width
Device center line from Finished floor	41"(1041mm), 38"(965mm) for elementary schools
Electric options	56 - Remote Latch Retraction
Door/Opening Height	120" (3048mm) Max Door Opening
Mounting	Supplied standard with wood and machine screws
Dogging	Hex dogging standard
Strike	640 for Top & Bottom Strike
Center Case Dimensions	8-3/8" (213mm) x 2-5/8" (67mm)
Certifications	ANSI A156.3 – 2008 Grade 1
Manufacturer's Warranty	5 Years
