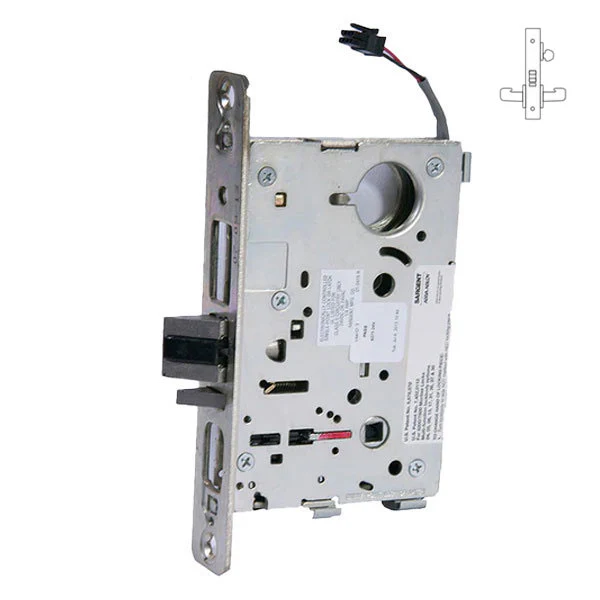

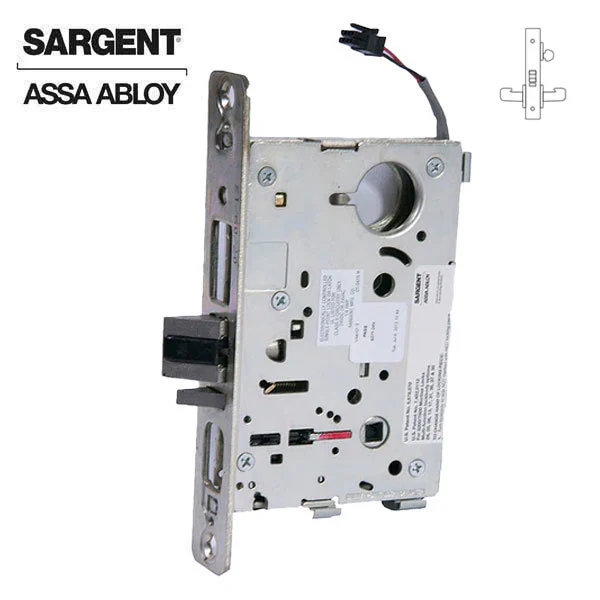

Sargent - 8271-24V - Electrified Mortise Lock Body - LN Rose / L Lever - Fail Secure - 24VDC - Grade 1
The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block. Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available. With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durableāfar surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testingāfor additional resistance against vandalism and unauthorized entry. This electromechanical version of the 8200 Series Mortise Lock operates with 24VDC and can be used in stand-alone applications or as part of an integrated access control system. Featuring EcoFlex technology, the electromechanical version dramatically reduces power consumption by up to 96%, as certified by GreenCircle.
Features:
- ANSI/BHMA Grade 1 certified for cycle and strength requirements
- UL-cUL listed for 3-hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- 10-year Manufaturer warranty
- Patented design and construction
Specifications:
| BrandĀ | Ā Sargent |
| Amp Draw | 500mA, 15mA Holding |
| Base MaterialĀ | Brass or Bronze |
| Bolt Protection | 3/4" |
| Door Thickness | 1-3/4" |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Fire Rated | 2 hours |
| Function | 71-Electrical Fail Secure |
| Grade | Grade 1 |
| Hand | Field Reversible |
| Height | 4.375 |
| Length | 9.25 |
| Limited Warranty | 2 Years |
| Lock Face Size | 8" X 1-1/4" |
| Manufacturer | Sargent |
| Operating VoltageĀ | 12VDC/24VDC |
| Power | Hard Wired |
| Screws | Combination |
| Series | 8270 Series Electrified Lever Mortise Locks |
| Strike Height | 4-7/8" |
| Strike Number | 82-0110 |
| Strike Type | ASSA |
| Strike Width | 1-1/4" |
| Weight | 6.1 |
| Width | 5.625 |
| Warranty | 10 Year Warranty |
