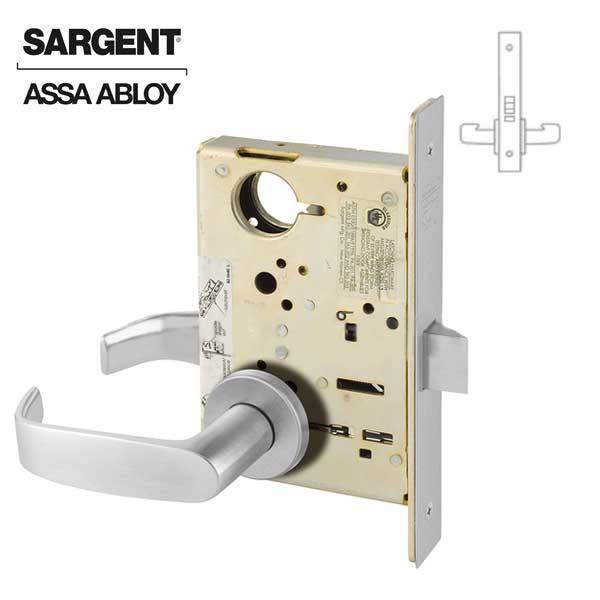

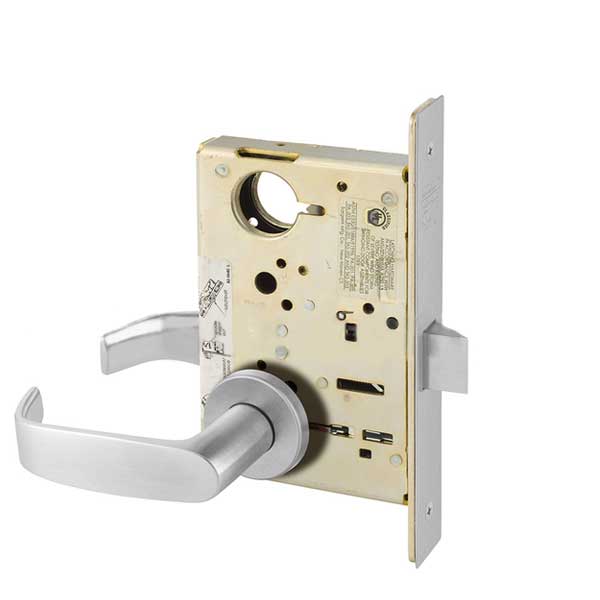

Sargent - 8215 - Mechanical Mortise Lock - LN Rose / L Lever - Passage - Right Hand - 26D - Satin Chrome Plated - Grade 1
SRG-8215-LNL-RH-26D
The Sargent ļ»æ8215-LNL-RH-26DĀ PassageĀ mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.
Features
- Strong and Reliable
- Pre-assembled components make installation fool-proof
- Lock easily re-handed without removing parts or opening the lock case
- Only 30 degrees of lever rotation required to retract latch-bolt for easy operation
- Trim from either side retracts latchbolt at all times
Specifications
| Construction: | Heavy Duty SteelĀ |
| Lock Function: | 15 - Passage |
| Door Thickness: | 1-3/4"Ā (44mm) |
| Backset: | 2-3/4" (70mm) |
| Faceplate:Ā | 8" (203mm) x 1-1ā4" (31mm) |
| Strike: | ANSI Standard A115.1; curved lip, non-handed |
| Strike Height: | 4-7/8" |
| Frame Inner Dimension Requirements:Ā | 8āL x 1-1/2āW x 1-1/2āD |
| Stile: | 4-1/2" |
| Rose & Lever: | Standard LN Rose and L Lever |
| Cylinder: |
1-1/8" Brass |
| Keyway: | 6 Pin |
| Finish: | 26D - Satin Chrome Plated |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 10-Year Manufacturer Warranty |
Ā
Downloads
Original: $323.79
-65%$323.79
$113.33Product Information
