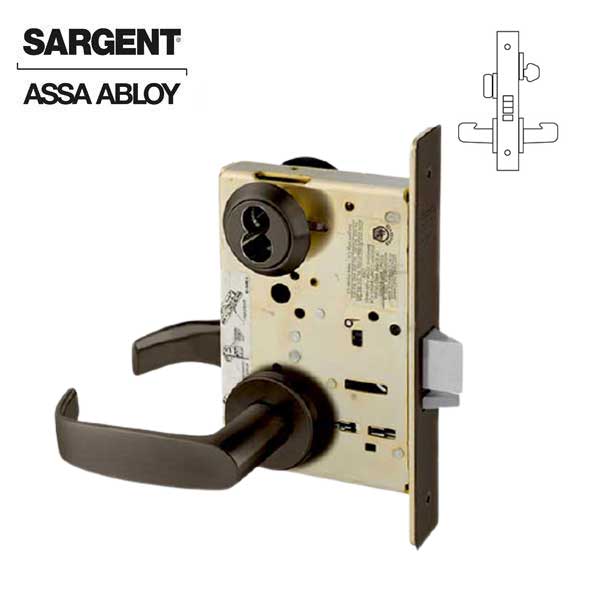

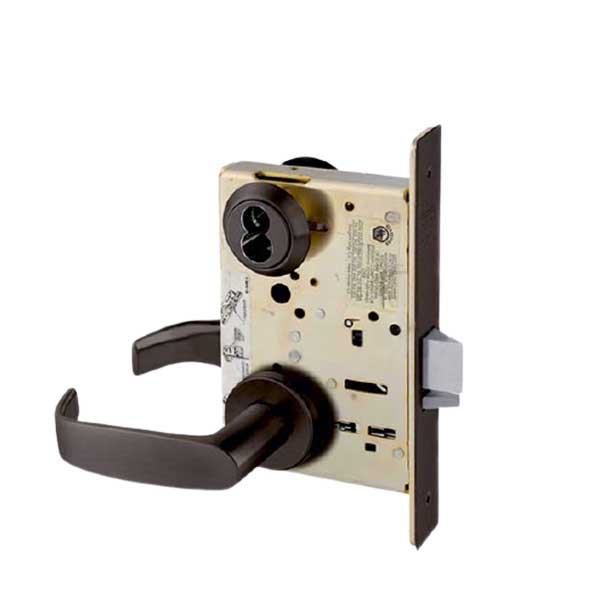

Sargent - 8205 - Mechanical Mortise Lock - LN Rose / L Lever - Office/Entry - SFIC - 10BE - Dark Oxidized Satin Bronze - Grade 1

SRG-70-8205-LNL-10BE

The Sargent 8205-LNL-10BE Office or Entry mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

Office or Entry lock: Key outside retracts latch-bolt, also locks and unlocks outside trim; Trim inside always retracts latch-bolt, trim outside remains locked; Thumb-turn inside locks and unlocks outside trim.





Features

• Strong and Reliable
• Pre-assembled components make installation fool-proof
• Lock easily re-handed without removing parts or opening the lock case
• Only 30 degrees of lever rotation required to retract latch-bolt for easy operation
• Key outside retracts latch-bolt, also locks & unlocks outside trim

• Trim inside always retracts latch-bolt, trim outside remains locked

• Auxiliary dead-latch
• Multi-function 8200/R8200/7800 lock-body
• Exceeds Grade 1 requirements




Specifications

Construction:	Heavy Duty Steel
Lock Function:	Mechanical Mortise Lock - Office or Entry - Outside locked/Inside Unlocked
Door Thickness:	1-3/4" (44mm)
Backset:	2-3/4" (70mm)
Faceplate:	8" (203mm) x 1-1⁄4" (31mm)
Strike:	ANSI Standard A115.1; curved lip, non-handed
Strike Height:	4-7/8"
Frame Inner Dimension Requirements:	8”L x 1-1/2”W x 1-1/2”D
Bolt Diameter:	3/4”
Bolt Throw:	1”
Stile:	4-1/2"
Rose & Lever:	Standard LN Rose and L Lever
Cylinder:	1-1/8" Brass SFIC (not included)
Keyway:	6 Pin SFIC
Finish:	10BE - Dark Oxidized Satin Bronze, Equivalent
Certifications:	UL / cUL Listed for 3-Hour Doors
Warranty:	10-Year Manufacturer Warranty



Downloads

• Product Template
• Installation Guide
