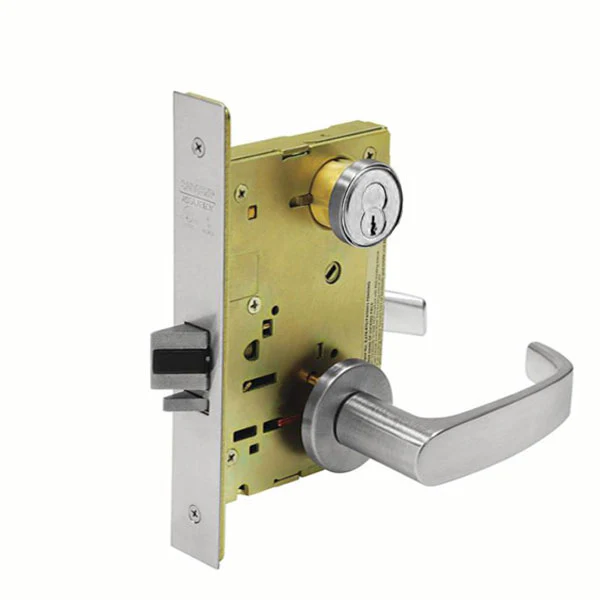

Sargent - 8204 - Mechanical Mortise Lock - Storeroom - 7-Pin Construction Core - O Rose/NJ Lever - Keyed Alike - Satin Chrome - Grade 1
The Sargent 727P-11-8205 Office or Entry mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. Comes with a 7-Pin Removable Construction Core. This allows a construction crew to have temporary keys made to gain entry, and then as soon as a permanent option is needed, it is easily removable. Permanent Core Not Included
Storeroom: Key outside retracts latch-bolt; Trim inside always retracts latch-bolt, trim outside remains locked.
Features
- Strong and Reliable
- Pre-assembled components make installation fool-proof
- Lock easily re-handed without removing parts or opening the lock case
- Only 30 degrees of lever rotation required to retract latch-bolt for easy operation
- Lock accepts XC-SFIC (7-pin, removable core)
- Provided with 7-pin keyed construction core
- XC-SFIC permanent core ordered separately
- Key outside retracts latch-bolt, also locks & unlocks outside trim
- Trim inside always retracts latch-bolt, trim outside remains locked
- Auxiliary dead-latch
Specifications
| Construction: | Heavy Duty Steel |
| Lock Function: | 04 - Storeroom |
| Door Thickness: | 1-3/4" (44mm) |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | 8" (203mm) x 1-1ā4" (31mm) |
| Strike: | ANSI Standard A115.1; curved lip, non-handed |
| Strike Height: | 4-7/8" |
| Frame Inner Dimension Requirements: | 8āL x 1-1/2āW x 1-1/2āD |
| Bolt Diameter: | 3/4ā |
| Bolt Throw: | 1ā |
| Stile: | 4-1/2" |
| Rose & Lever: | O Rose and NJ Lever |
| Cylinder: |
11 - Standard Construction Core Provided |
| Permanent Cylinder: | Sold Separately |
| Keyway: | 7 Pin XC Keyway |
| Keying: | Keyed Alike |
| Finish: | 26D-Satin Chrome Plated |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 10-Year Manufacturer Warranty |
